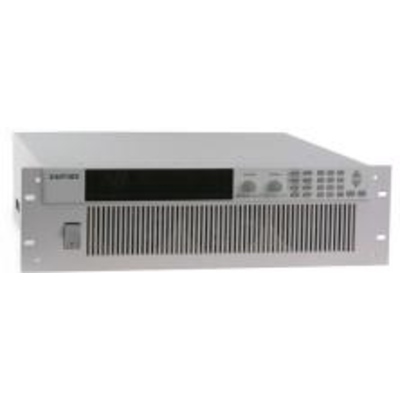

Xantrex XDC40-150 Programmable DC Power Supply, 0 to 40 Vdc, 0 to 150 A
The Xantrex XDC40-150, 6 kW digital controlled programmable DC power supply provides clean, reliable power for ATE, burn-in, magnet charging, OEM, and other test and measurement applications. With an embedded controller, it has a unique menu-driven auto sequencing capability, which allows for complex test sequences to be entered and saved via the front panel without the need for external computers or software.

With the high power XDC 6 kW, ten different test programs of up to 99 voltage level steps each, can be constructed and executed by a manual or external trigger. This stand-alone capability can be used for constructing simple voltage ramps, battery charging and simulation of battery voltage at engine start-up, component testing, and MIL 704E testing. Additionally, ten configurations of differing protection and output set points can also be conveniently stored, recalled, or set for default at start up.

Voltage: 0 to 40 Vdc
Current: 0 to 150 A
Output Power: 6000 W
Output noise (0-20 MHz): 70 mVp-p
Output ripple (rms): Voltage 10 mV, Current 50 mA
Load regulation: Voltage 10 mV, Current 30 mA
3 Phase, 190-242 Vac; 47-63 Hz operation
Weight: 75 lb; Size: 133 mm (5.2 in)H x 483 mm (19.0 in)W x 533 mm (21 in)D
