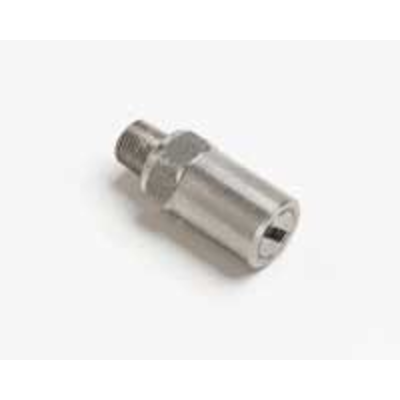

Fluke 700PRV Pressure Relief Valve Kit

Product Details

  • Manufacturer: Fluke

  • Model: 700PRV

  • Description:

    The Fluke 700PRV consists of two relief valves (1360 and 5450 psi) to be used with the 700HTP Hydraulic Test Pump. These relief valve…

No Current Sellers for Fluke 700PRV

Sign Up/Login to get notified when someone has one for sale.

Fluke 700PRV-1
Pressure Relief Valve Kit


Product Highlights

  • 700PRV uses a multi-turn adjustment screw to set preload on internal disc springs
  • This relief valve will protect the most commonly used Fluke pressure modules and pressure instruments from damage due to accidental over-pressurization
  • Adjustable from 725 to 5800 PSI (50 to 200 bar)
  • Preset at 2,900 psi/200 bar
  • Repeatability to 10% of nominal setting
  • Installs directly into the 700HTP-1 pump
  • Size 1.52 in by 0.62 in diameter (38 mm by 16 mm diameter)
  • Weight 1.6 oz (46 g)
  • Material Type 303 stainless steel

Repeatability _10% of nominal setting. Multi-turn adjustment screw to set preload on internal disc springs.

Included: The 700PRV contains two relief valves.

One adjustable from 725-2900 psi/50-200 bar (preset at 1360 psi/94 bar)

One adjustable from 2900-5800 psi/200-400 bar (preset at 5450 psi/376 bar) Instruction sheet
