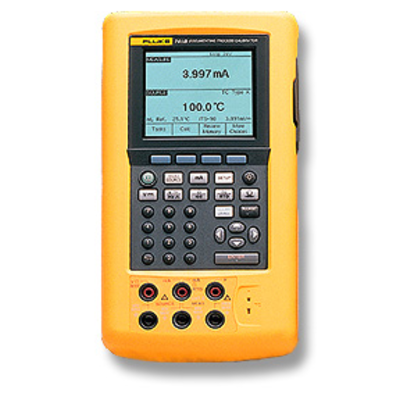

Fluke 741B Documenting Process Calibrator

Product Details

  • Manufacturer: Fluke

  • Model: 741B

  • Description:

    The 741B does the work of several tools – sourcing, simulating and measuring pressure, temperature, and electrical signals in one rugged, hand-held device. For documentation, the 741B automates calibration procedures and captures your data.

No Current Sellers for Fluke 741B

Sign Up/Login to get notified when someone has one for sale.

A complete documenting calibrator

The 741B does the work of several tools – sourcing, simulating and measuring pressure, temperature, and electrical signals in one rugged, hand-held device. For documentation, the 741B automates calibration procedures and captures your data.And, of course, it helps you meet rigorous standards like ISO 9000, FDA, EPA and OSHA regulations. The 741B is the choice for plants that use standard company worksheets and that make reports in the shop. It has storage capacity for a day’s calibration and measurement data. When you’re back at the shop recall the data on screen to fill out calibration forms.

The 741B is easy to use with flexible test strategies. And like all Fluke tools, it's rugged, reliable and tough as nails. It's like having several powerful tools in one - so you can work faster than ever:

  • Measure volts, mA, RTDs, thermocouples, frequency, and ohms to test sensors, transmitters and other instruments
  • Source/simulate volts, mA, thermocouples , RTDs, frequency, ohms, and pressure to calibrate transmitters
  • Power transmitters during test using loop supply with simultaneous mA measurement
  • Measure/source pressure using any of 29 Fluke 700Pxx Pressure Modules
  • Measure and source simultaneously with one compact, rugged, reliable tool
  • Create and run automated as-found/as-left procedures to satisfy quality programs or regulations. Record and document results
  • Use many features like autostep, custom units, user entered values during test, one-point and two-point switch testing, square root DP flow testing, programmable measurement delay etc.
  • Easy to use
  • Three year warranty
  • Bright white display. Read both sourced and measured parameters.
  • Multi lingual interface
  • Handling of fast pulsed RTD transmitters and PLCs, with pulses as short as 1msec.
  • Measurement Accuracy
    Voltage DC 110.000 mV 0.025%+0.015%1
    1.10000 V 0.025% + 0.005%1
    11.0000 V 0.025% + 0.005%1
    110.000 V 0.05% + 0.005%1
    300.00 V 0.05% + 0.005%1
    Voltage AC 20 to 40 Hz 2% + 10
    40 to 500 Hz 0.5% + 5
    500 to 1 kHz 2% + 10
    1 kHz to 5 kHz 10% + 20
    Ranges 1.1000, 11.000, 110.00, 300 V
    Current DC 30.000 mA 0.01% + 0.015%1
    110.00 mA 0.01% + 0.015%1
    Resistance 11.000 Ω 0.05% + 50 mΩ
    110.00 Ω 0.05% + 50 mΩ
    1.1000 kΩ 0.05% + 500 mΩ
    11.000 kΩ 0.1% + 10 Ω
    Frequency 1.00 to 109.99 Hz 0.05 Hz
    110.0 to 1099.9 Hz 0.5 Hz
    1.100 to 10.999 kHz 5 Hz
    11.00 to 50.00 kHz 50 Hz
    Pressure Accuracy From 0.025% of range using any of 29 pressure modules.
    (For detailed specifications refer to pressure modules in options and accessories)
    Modules available for differential, gauge, vacuum, absolute, dual and high pressure.
    1. (% of reading + % of full scale)
    Source Accuracy
    Voltage DC 110.000 mV 0.01% + 0.005%1
    1.10000 V 0.01% + 0.005%1
    15.0000 V 0.01% + 0.005%1
    Current DC 22.000 mA (Source) 0.01% + 0.015%1
    22.000 mA (Simulate) 0.02% + 0.03%1
    Resistance 11.000 Ω 0.01% + 20 mΩ
    110.00 Ω 0.01% + 40 mΩ
    1.1000 kΩ 0.02% + 500 mΩ
    11.000 kΩ 0.03% + 5 Ω
    Frequency 0.00 to 10.99 Hz 0.01 Hz
    11.00 to 109.99 Hz 0.1 Hz
    110.0 to 1099.9 Hz 0.1 Hz
    1100 to 21999 Hz 2 Hz
    22.000 to 50.000 kHz 5 Hz
    1. (% of reading + % of full scale)
    RTDs and Thermocouples
    Measure accuracy 10 Ω Cu (427) 2°C
    100 Ω Pt (3916) 0.3°C
    100 Ω Pt (3926) 0.3°C
    100 Ω Pt (385) 0.3°C
    200 Ω Pt (385) 0.3°C
    500 Ω Pt (385) 0.3°C
    1000 Ω Pt (385) 0.3°C
    120 Ω Ni (672) 0.3°C
    For 2-and 3-wire measurement, add 0.4°C
    E 0.3°C
    N 0.5°C
    J 0.3°C
    L 0.3°C
    K 0.3°C
    T 0.3°C
    U 0.3°C
    B 0.9°C
    R 1.0°C
    S 0.9°C
    C 0.6°C
    Accuracy with external cold junction, for internal junction add 0.2°C
    Source accuracy 10 Ω Cu (427) 1°C
    100 Ω Pt (3916) 0.1°C
    100 Ω Pt (3926) 0.1°C
    100 Ω Pt (385) 0.1°C
    200 Ω Pt (385) 0.1°C
    500 Ω Pt (385) 0.1°C
    1000 Ω Pt (385) 0.1°C
    120 Ω Ni (672) 0.1°C
    For 2-and 3-wire simulation, add 0.4°C
    E 0.2°C
    N 0.3°C
    J 0.2°C
    L 0.2°C
    K 0.3°C
    T 0.3°C
    U 0.3°C
    B 0.8°C
    R 0.9°C
    S 0.9°C
    C 0.6°C
    Accuracy with external cold junction, for internal junction add 0.2°C
    Specifications
    Ramp functions Source functions Voltage, current, resistance, frequency, temperature
    Rate 4 steps/second
    Trip detect Continuity or voltage (Continuity detection not available when sourcing current)
    Loop power function Voltage Selectable, 24 V or 28 V
    Accuracy 5%
    Maximum current 22 mA, short circuit protected
    Maximum input voltage 30 V DC
    Step functions Source functions Voltage, current, resistance, frequency, temperature
    Manual step Selectable step, change with arrow buttons
    Autostep Fully programmable for function, start delay, stepvalue, time per step, repeat
    Environmental Specifications
    Operating temperature -10°C to +50°C
    -20°C to +50°C2
    Storage temperature -20°C to +60°C
    Dust/water resistance Meets IP52, IEC 529
    Operating altitude 2800 m
    2. Except frequency and AC
    Safety Specifications
    Agency approvals CAN/CSA C22.2 No 1010.1-92, ASNI/ISA S82.01-1994, UL3111, and EN610-11993
    Mechanical and General Specifications
    Size 130 x 236 x 61 mm
    Weight 1.4 kg
    Batteries NiCd: 7.2V, 1.7 Ah
    Battery life ~8 hours typical
    Battery replacement Via snap-shut door without opening calibrator; no tools required
    Side port connections Pressure module connector
    Connection for optional battery eliminator
    Data storage capacity 1 day of calibration results
    90 day specifications The standard specification intervals for the 741B is 1 and 2 years.
    Typical 90 day measurement and source accuracy can be estimated by
    Dividing the one year "% of reading" or "% of output" specifications by 2.
    Floor specifications, expressed as "% of full scale" or
    "Counts" or "ohms" remain constant.


Includes:

  • BC7217 battery charger
  • BP7217 battery pack
  • Instruction manual
  • NIST-traceable calibration report and data
  • One set of TP220 test probes
  • Two sets of AC220 test clips
  • Two sets of TL224 industrial test leads
