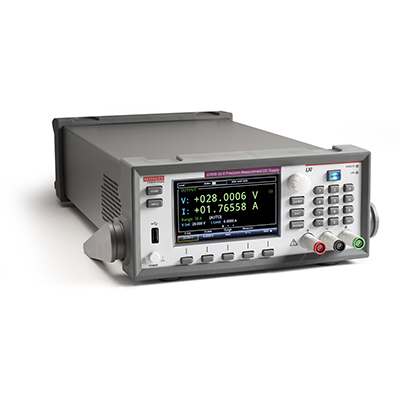

The Series 2280S Precision Measurement, Low Noise, Programmable DC Power Supplies can source stable, low noise voltages as well as monitor load currents over a wide dynamic range from amps to nanoamps. The Model 2280S-32-6 can output up to 32V at up to 6A; the Model 2280S-60-3 can output up to 60V at up to 3.2A.

Both supplies use linear regulation to ensure low output noise and superior load current measurement sensitivity. A high resolution color Thin Film Transistor (TFT) screen displays a wide range of information on measurements. Soft-key buttons and a navigation wheel combine with the TFT display to provide an easy-to-navigate user interface that speeds instrument setup and operation. In addition, built-in plotting functions allow monitoring trends such as drift. These supplies provide the flexibility required for both benchtop and automated test system applications. For example, they provide a list mode, triggers, and other speed optimization functions to minimize test time in automated testing applications.

•  100nA to 6A with high accuracy
• • Measure voltage and current with 6½-digit resolution
• • Capture dynamic load currents as short as 140«s
• • Output up to 192W of low noise, linear regulated power
• • Programmable rise and fall times eliminate voltage overshoot and undershoot transients
• • Built-in graphing simplifies analyzing trends or displaying voltage or current waveforms
• • High resolution TFT display and soft-key/icon-based user interface simplify power supply operation
• • Programmable output sequences reduce test times
• • Sink up to 0.45A to discharge voltage quickly
• • Digital I/O for direct communication with other devices and instruments
• • GPIB, USB, and LAN interfaces
• • Built-in web page simplifies automated control/monitoring/data logging
• • Automate tests easily with KickStart start-up software
