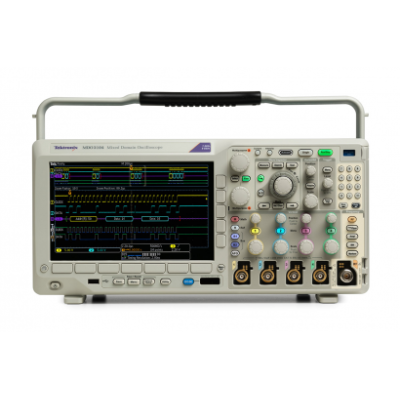

Tektronix MDO3012 Mixed Domain Oscilloscope
Product Details
-
Manufacturer: Tektronix
-
Model: MDO3012
-
Description:
Tektronix MDO3012 100 MHz, 2-Ch Mixed Domain Oscilloscope
The MDO3000 Mixed Domain Oscilloscope features six integrated instruments, including a spectrum analyzer, function generator and more, giving you the ability to capture analog, digital and RF signals with one scope. You can even add instruments, analysis functions and upgrade bandwidth as your design challenges evolve.
Features |
Benefits |
| Mixed Domain Oscilloscope – integrated spectrum analyzer | Every model comes standard with an integrated spectrum analyzer, enabling you to analyze RF signals up to the rated bandwidth of the scope. Option MDO3SA extends the spectrum analyzer frequency coverage to 3 GHz. |
| Wave Inspector®Navigation | Dedicated front panel controls enable easy zoom and navigation through 10 Mpoint records. Automated search capability quickly finds and marks every occurrence of user specified events. |
| Integrated, upgradable arbitrary / function generator | The function generator saves bench space and enables closed loop testing by simulating sensors or unfinished system blocks. Capture real signals and replicate them as arbitrary waveforms up to 128k points long, with a single instrument. |
| Integrated, upgradable logic analyzer | Enables debug of digital portions of embedded designs. Trace system timing issues with broader system visibility. |
| Serial and parallel bus triggering and analysis | Quickly debug your parallel bus and/or common serial buses with automated trigger, decode and search. |
| Integrated digital voltmeter and frequency counter | Free with product registration! Enables quick measurements of DC voltage, AC+DC RMS, AC RMS and frequency. |
| Incredibly small form factor | Saves valuable bench space by integrating a spectrum analyzer, arbitrary function generator, logic analyzer, protocol analyzer and DVM/counter into your debug tool of choice – the oscilloscope. Only 5.8 inches deep and 9 lbs yet it still provides a 9” WVGA display. |
| Upgradeability | Don’t know what you’ll be working on next year? Upgrades are available to analog bandwidth, spectrum analyzer frequency range, arbitrary function generator, digital channels (MSO), serial trigger and analysis packages, and more – ensuring usefulness for years to come. |
MDO3AERO Application Module; Aerospace serial triggering and analysis (MIL-STD-1553)
MDO3AUDIO Application Module; Audio serial triggering and analysis (I2S, LJ, RJ, TDM)
MDO3AUTO Application Module; Automotive serial triggering and analysis (CAN, LIN)
MDO3BND Application Module; Bundle module for MDO3000 Series (Includes MDO3AERO,MDO3AUDIO, MDO3AUTO,MDO3COMP,MDO3EMBD,MDO3FLEX,MDO3LMT,MDO3PWR,MDO3USB)
MDO3COMP Application Module; Computer serial triggering and analysis (RS-232/422/485/UART)
MDO3EMBD Application Module; Embedded serial triggering and analysis (I2C, SPI)
MDO3FLEX Application Module; FlexRay serial triggering and analysis (FlexRay)
MDO3LMT Application Module; Limit/Mask test
MDO3PWR Application Module; Power measurement and analysis
MDO3USB Application Module; USB serial triggering and analysis (LS, FS)
