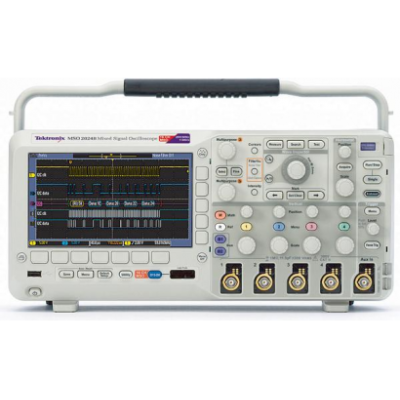

Tektronix MSO2004B (MSO/DPO2000B) Mixed Signal Oscilloscope
Product Details
-
Manufacturer: Tektronix
-
Model: MSO2004B
-
Description:
Tektronix MSO2004B 70 MHz, 4+16-Ch, 1 GS/s Mixed Signal Oscilloscope
Offering up to 200 MHz bandwidth and 1 GS/s sample rate, the MSO/DPO2000B Mixed Signal Oscilloscope Series provides advanced debug features at an entry-level price. With as many as 20 channels, you can analyze analog and digital signals with a single instrument. Combine that with automated serial and parallel bus analysis, FilterVu low-pass filter and innovative Wave Inspector controls, and the MSO/DPO2000B Series provides the feature-rich tools you need to simplify and speed debug of your complex design. All backed by a 5-year warranty.
Features |
Benefits |
| Up to 4 analog and 16 digital channels | Analyze analog and digital signals on a single instrument for system-level troubleshooting of complex designs. |
| Complete set of triggers | Rapidly capture signal anomalies with over 125 available trigger combinations, including setup/hold, serial packet content and parallel data. |
| Wave Inspector® controls | Easily search, mark and navigate long record lengths to find all occurrences of your event. |
| Automated Measurements | Simplify analysis of your device with 29 automated measurements and FFT analysis. |
| Parallel bus triggering and analysis (MSO Series) | Quickly debug your parallel bus with automated trigger, decode and search. |
| Serial triggering and analysis options | Quickly debug common serial buses with automated trigger, decode and search – I2C, SPI, CAN, LIN, and RS-232/422/485/UART. |
| TekVPI® Versatile Probe Interface | Smart communication between oscilloscope and probe, Enables direct connection to current probes (including ac/dc), differential probes, and single-ended active probes. |
| 5-year warranty | Save on replacement costs and maintenance costs compared to competitive scopes. |
DPO2AUTO Application Module: Automotive Serial Triggering and Analysis (CAN, LIN)
DPO2BND Application Module; Bundle module, including DPO2AUTO, DPO2COMP & DPO2EMBD, for MSO DPO2000B Series
DPO2COMP Application Module: Computer Serial Triggering and Analysis (RS-232/422/485/UART)
DPO2EMBD Application Module: Embedded Serial Triggering and Analysis (I2C, SPI)
