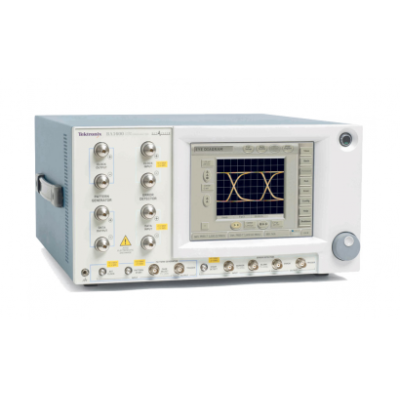

The BitAlyzer Bit Error Rate Testers BA Series are the industry__s best solution to the challenging signal integrity and BER issues faced by designers verifying, characterizing, debugging, and testing sophisticated electronic and satellite communication system designs. The BitAlyzer BA Series features exceptional performance in signal generation and analysis, operational simplicity, and unmatched debugging tools to accelerate your day-to-day tasks. The most comprehensive suite of physical-layer test tools available and the intuitive user interface provide easy access to the maximum amount of information.

Features

Benefits

Pattern Generation and Error Analysis, highspeed BER Measurements up to 1.6 Gb/s
The combination of generation and analysis in one instrument enables receiver BER compliance testing for today__s electronic and communications systems

Integrated, BER correlated eye diagram analysis with pass/fail masks
Rapidly understand BER performance limitations, assess deterministic vs random errors, perform detailed pattern dependent error analysis, error burst analysis, and perform error free interval analysis.

Error Location and BER contour analysis on PRBS signals up to 1.6 GB/sec
Provides a quick understanding of signal integrity in terms of BER. Error location provides detailed BER pattern sensitivities to speed up identification of deterministic vs. random BER errors

ANSI Jitter Measurements (RJ, DJ, and TJ)
Fast, effective method for determining long pattern PRBS31 jitter composition with triangulation. Graphical representation makes jitter analysis more thorough, yet simpler to follow.

BER Contour with Automatic Mask Creation
Measure and view the eye diagram opening as a function of BER.
