“Superior signal integrity and probing for your application”. Keysight Technologies’ Infiniium 80000B Series and InfiniiMax II probing system will lead to improved measurements and increased design margins. The signal integrity advantages of Keysight’s Infiniium 80000B Series Scopes and InfiniiMax Probing System include the industry’s lowest noise floor, lowest jitter measurement floor, lowest trigger jitter, flattest combined frequency response of scope and probe and more. Superior signal integrity maximizes engineer’s design margins by not wasting any measurement accuracy due to the poor noise, jitter or frequency response of the scope or probing system.

If you are designing, debugging or validating a serial-data-based design, consider the DSA80000B Digital Signal Analyzer. The DSA80000B is built around an Infiniium DSO80000B Series oscilloscope and the InfiniiMax probing system, to provide critical capabilities for achieving accurate and repeatable measurements. The oscilloscope includes as standard the option 001 memory, the E2688A high-speed serial data analysis software, and the N5400A EZJIT Plus jitter analysis software at an attractive price. For more information, see DSA80000B Click here

See available accessories

Features:

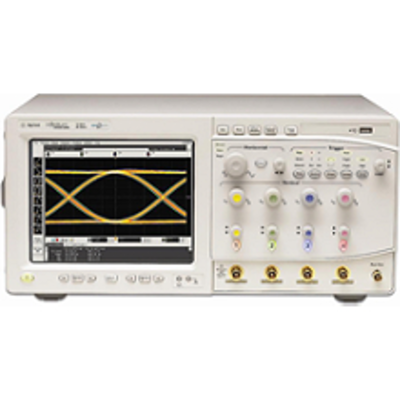

13 GHz bandwidth real-time oscilloscope with up to 40 GSa/s sample rate

Up to 2 Mpts MegaZoom deep memory at 40 GSa/s sample rates and 64 Mpts MegaZoom deep memory at 4 GSa/s, after-purchase memory upgrade available – Standard with DSA80000B

System bandwidth of 13 GHz (typical) with InfiniiMax II 1169A probing system

Industry’s lowest noise floor: 419uV @ 5 mV/div

Trigger jitter less than 500 fs rms

Industry’s largest sets of software applications

XGA touch screen display with 256 level intensity grading

Unrivaled InfiniiMax probing accessories support browsing, solder-in, socketed, and SMA use models

Application Software

E2681A EZJIT Jitter Analysis Software Option – Standard with DSA80000B

N5400A EZJIT Plus Jitter Analysis Software Option – Standard with DSA80000B

E2688A High Speed Serial Data Analysis Clock Recovery Software – Standard with DSA80000B

N5391A Low-Speed Serial Data Analysis Software

Keysight Infiniium Oscilloscopes and 89601A Vector Signal Analysis Software

N5392A Ethernet Electrical Performance Validation and Compliance Software

N5393A PCI Express Electrical Performance Validation and Compliance Software

N5494A DVI Electrical Performance Validation and Compliance Software

N5399A HDMI Electrical Performance Validation and Compliance Software

N5402A CAN Serial Data Analysis Software Option

N5409A Fully Buffered DIMM Compliance Application

N5410A Fibre Channel Compliance Application

N5411A Serial ATA Electrical Performance Validation and Compliance Software

N5412A Serial Attached SCSI Electrical Performance Validation and Compliance Software

N5413A DDR2 Clock Characterization tool

N5416A USB 2.0 Compliance Test Option

E2697A High Impedance Adapter (includes 500 MHz passive probe)

E2699A My Infiniium Integration Package Option

E2682A VoiceControl Option

89601A Vector Signal Analysis Software for Infiniium Oscilloscopes

Bandwidth: 12 GHz (13 GHz Typical)

Dynamic Range: 3.3 V

DC Offset Range: 16 V

Maximum Voltage: 30 V

Differential Input R: 50 k ?.

Differential Input C: 0.21 pF.

Single Ended Input R: 25 k ?

Single Ended Input C: 0.35 pF

Features:

• 13 GHz bandwidth real-time oscilloscope with up to 40 GSa/s sample rate
• Up to 2 Mpts MegaZoom deep memory at 40 GSa/s sample rates and 64 Mpts MegaZoom deep memory at 4 GSa/s, after-purchase memory upgrade available - Standard with DSA80000B
• System bandwidth of 13 GHz (typical) with InfiniiMax II 1169A probing system
• Industry's lowest noise floor: 419uV @ 5 mV/div
• Trigger jitter less than 500 fs rms
• Industry's largest sets of software applications
• XGA touch screen display with 256 level intensity grading
• Unrivaled InfiniiMax probing accessories support browsing, solder-in, socketed, and SMA use models
