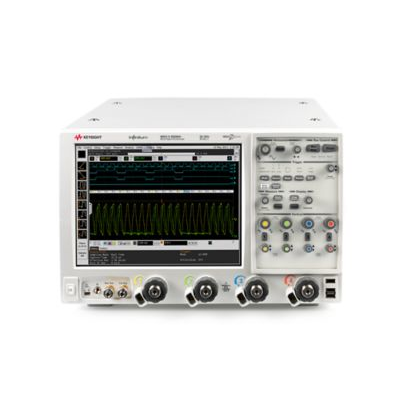

Whether youre deploying emerging high speed serial bus technology validating todays high-speed digital designs identifying spectral content of wide-bandwidth RF signals or analyzing transient physical phenomena, you need the truest representation of your signals under test. The Keysight Infiniium 90000 X-Series oscilloscopes are engineered for 33 GHz true analog bandwidth that delivers. By investing in a proprietary integrated circuit process, Keysight has enabled high-frequency capability while yielding the industrys lowest noise floor and jitter measurement floor giving the 90000 X-Series true analog hardware performance to 33 GHz. With its 33 GHz of true analog bandwidth, the MSOX93204A is ideal for directly digitizing signals well into the K and Ka band as well as validating SAS-3, FibreChannel, and other high-speed digital busses. It even analyzes 100 GBE complex optical signals with ease. The 90000 X-Series deliver the lowest noise and have the lowest jitter measurement floor in the industry, ensuring superior measurement accuracy.

The accompanying probing system offers browsing to 30 GHz with a full range of accessories rated to 28 GHz and the ability to upgrade bandwidth in the future. PrecisionProbe is the only tool available on an oscilloscope that allows for channel characterization and compensation.

The MSOX93204A features 16 fully-integrated, time-aligned digital channels that give you insight into timing relationships and allow precise triggering. The MSOX93204A has special modes designed to help with debug and validation of memory systems.

The worlds fastest real-time oscilloscope

Industrys most accurate 33 GHz true analog bandwidth

80 GSa/s sample rate 2 channels / 40 GSa/s sample rate 4 channels

Industry deepest memory with up to 2 Gpts memory with 20 Mpts per channel standard (50 Mpts per channel with DSA option)

Industry-leading 16 channels with up to 20 GSa/s timing resolution

The highest real-time scope measurement accuracy

33 GHz of bandwidth

Industrys lowest oscilloscope noise floor (2.15 mVrms at 33 GHz at 50mV/div)

Lowest jitter measurement floor (
