Assess Design Readiness with Greater Confidence

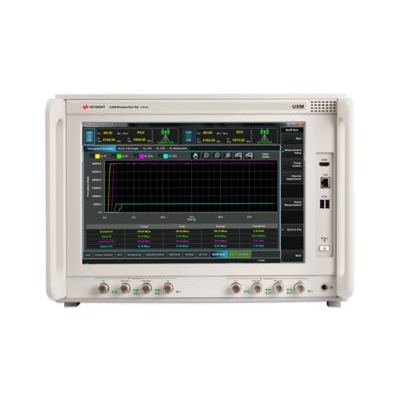

The Keysight Technologies, Inc. UXM is a highly-integrated signaling test set created for functional and RF design validation in the 4G era and beyond. It provides the integrated capabilities you need to test the newest designs, delivering LTE-Advancedcategory 10 data ratesnow and handling more complex requirements later. When the team counts on you to know when a new chipset or UE will pass, count on the UXM to help you make a clear call.

Gain new insights with integrated capabilities for LTE-Advanced design validation

Stable, bidirectional data throughput for up to 3CC downlink (450 Mbps), 2CC uplink (100 Mbps)

Built-in applications server andtwo independent 100 MHz RF transceivers enabling multiple cells, UL and DL carrier aggregation, up to 4×2 DL MIMO, and integrated fading

Receiver test capabilities including flexible channelallocation and closed-loop testing, andindustry-proven X-Series measurement applications for transmitter testing

Wide range of network emulator capabilities including complex handover scenarios, IMS/VoLTE and (F)eICICsupport.

Be ready for 4G and beyond

Multi-format capable platform that will handle the next advancements in antenna techniques, component carriers, and data rates

Extensible architecture includes high-speed interconnects, upgradable processors, and multiple expansion slots

Versatile display capabilities with 15-inch touch screen interface

Make a seamless transition

Get up and running quickly with a new-yet-familiar user interface

Reuse existing test software with minimal changes

Get more from every budget dollar through Keysight’s tradition of investment protection
