The E5063A is a low cost network analyzer providing optimized performance and functionality for testing simple passive components such as antennas, cables, filters, and PCBs. The E5063A provides the best balance between price and performance to satisfy your business and technical requirements. It leverages the consistent measurement framework of the industry standard ENA Series to boost efficiency and productivity, and is future proof and ready to evolve as the technologies change.

The U1810B USB coaxial SPDT switch can be controlled with the E5063A. By programming the U1810B and the E5063As measurement sequence, you can build an economy multi-DUT test solution for testing VSWR of four antennas with a single instrument. This will further reduce your cost of test.

The E5063A with option 011 is the PCB Analyzer offering time domain and frequency domain measurement capabilities for PCB manufacturing tests, as well as graphical user interface. The E5063A PCB Analyzer provides more accuracy and R&R (Repeatability & Reproducibility), more language supports, and more ESD robustness compared with traditional sampling oscilloscopes.

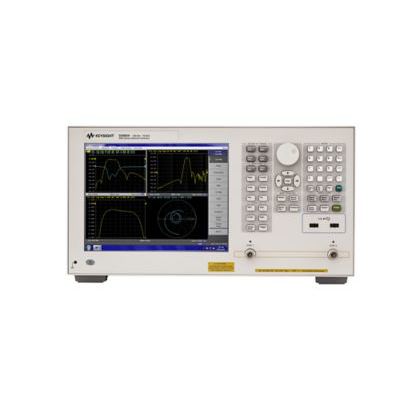

E5063A ENA Series network analyzer

100 kHz to 4.5 / 8.5 / 18 GHz

2-port 50 ohm S-parameter test set

Trace noise: 0.002 dB rms (typ.)

Dynamic range: 122 dB (typ.)

Stability: 0.01 dB/degC

Fixture simulator

Option 011 Time domain analysis/Test Wizard
