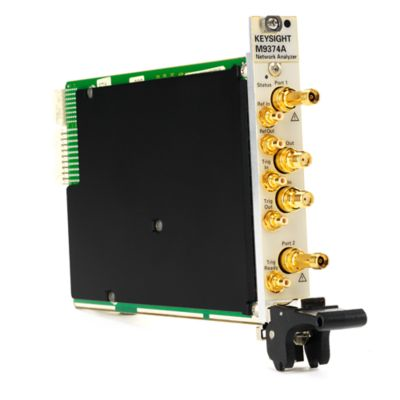

The Keysight M9374A PXIe vector network analyzer (VNA) is a full two-port VNA that fits in just one slot. The PXI VNA also performs fast, accurate measurements and reduces your cost-of-test by allowing you to simultaneously characterize many devices two-port or multiport using a single PXI chassis.

Each module is a completely independent two-port network analyzer. They offer the best PXI VNA performance on key specifications such as dynamic range, measurement speed, trace noise and stability. Multiple modules can be configured into a multiport VNA of up to32 ports for measuring multiport devices. All ports are fully synchronous so multiple ports can be measured simultaneously and multiport error correction applied. Additionally, multiple modules can be configured into four or more independent VNAs, all within a single PXI chassis.

PXI VNA Firmware, Upgrades, and Support

Capabilities:

Full 2-port S-parameters in a single-slot module

N-port multiport configurations available with multiple modules

Configurable as multiple independent VNAs

Compatible with electronic calibration (ECal) modules

Productivity:

Test multiple devices simultaneously, with multi-VNA capability

Test multiport devices faster than using switch matrices

The fastest measurement speed in a PXI VNA

Best accuracy derived from the best PXI VNA specifications

Specifications:

Fast sweep speed: 18 msec, 401 points, 600 kHz IFBW

Dynamic range: 110 dB at 20 GHz

Trace noise: 0.003 dB specified, 0.001 dB typical

Stability: 0.020 dB/C
