High Bandwidth: 1 GHz modulation bandwidth / channel, 2 GHz I/Q modulation bandwidth and 1.5 GHz carrier frequency

Reliable and repeatable measurements through best dynamic range and low harmonic distortion. Markers don’t reduce DAC resolution.

2 or 4 channels. Combine 2 channels phase coherent or use them as two independent instruments in a single box. Two instruments can be synchronized to form a 4-channel system.

3 software selectable amplifiers optimized for different applications requiring different signal characteristics.

2 Vpp(se) or 4 Vpp(diff) into 50 for many test cases and devices.

Advanced sequencing for best usage of 64 MSa memory for real-world signals.

Dynamic Sequence control lets your application control the waveform in real time.

10 pre-defined waveforms speed up your measurements.

Applications

Wireless standards with > 1 GHz modulation BW (WiHD,WiGig)

RF environment simulation up to 1.5 GHz (e.g. DVB-T/H, T-DMB)

UWB up to 2 GHz modulation BW

Software Defined Radio

Satellite

Radar

General purpose arbitrary waveform generator and function generator

Education

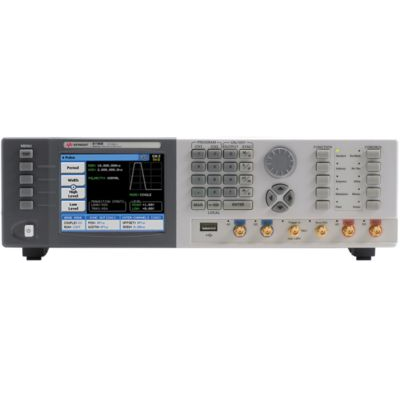

10 MSa/s 4.6 GSa/s, 12 bit Arbitrary Waveform and Function Generator

2 GHz IQ modulation bandwidth

2 channels (coupled and phase coherent / uncoupled)

8-bit external sequence / segment control

Up to 64 MSa memory

Advanced sequencing capabilities

2 markers with adjustable width and levels, markers do not reduce DAC resolution

Waveform Creation and Editing

Get advanced signal creation/editing capability without tedious programming with 33503A BenchLink Waveform Builder Pro Software.
