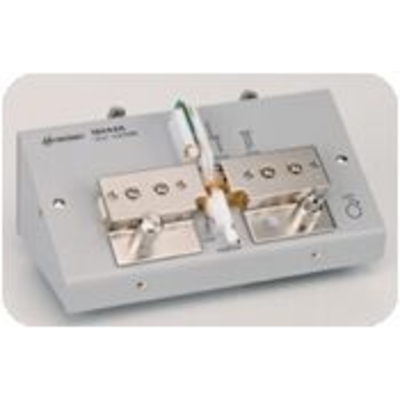

The 16044A is designed for impedance evaluations of low impedance SMD of up to 10MHz. The minimum SMD size that this fixture is adapted to evaluate is 1.6(L)x0.8(W)[mm]. The 16044A has a Kelvin (4-Terminal) contact, which ensures repeatable measurements. It is also equipped with a mechanism for easily performing open and short compensation.

FrequencyDUT Dimensions: (minimum applicapble)0.06(L)x0.03(W)inch. (1.6(L)x0.8(W)mm)Measurement Instrument: 4192A, 4194A(Impedance Mode), 4294A, 4263B, 4268A, 4278A, 4279A, 4284A, 4285A, E4980AFrequency: DC to 10MHz, DC Bias: -40V to +40VOperating Temperature: 0 to 55degCTerminal Connection: BNC, 4 terminal-pairDimensions(approx.): 160(W) x 70(H) x 100(D)mm SMD Test Fixture Selection Table
