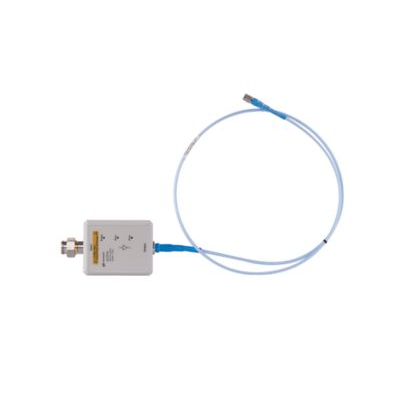

The U7227A, 10 MHz to 4 GHz USB preamplifier is designed to bring reliable gain and low noise figure to measurement systems improving the overall system performance and reduce systematic errors a total solution to the X-Series signal analyzers to perform noise figure measurements.

When connected to the X-Series signal analyzers, the USB preamplifiers can automatically configure the analyzers to detect the specific preamplifier connected, and download the embedded calibration data such as gain, noise figure and S-parameters. The calibration data provides accurate correction data and more repeatable results for each actual measurement made.

View the N9000 X-Series Signal Analyzer Data Sheets

Embedded smart features and benefits:

Automatic gain correction value with temperature compensation and transfer of calibration data (noise figure and S-parameters) through USB plug and play features for improve noise figure measurements when used with Keysight X-Series signal analyzers

Excellent noise figure and optimized gain with theX-Series signal analyzers improves measurement accuracy and minimizes uncertainty

Provides broadband operating frequency from 10 MHz up to 4 GHz for various applications

Rugged and portable design for bench top measurements or remote front end field applications
