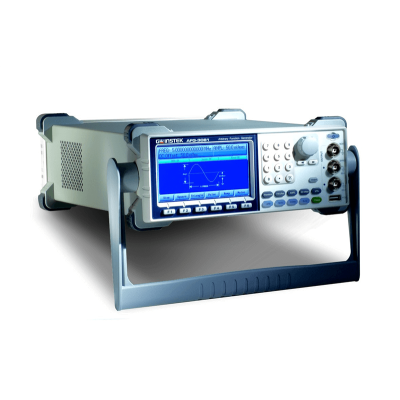

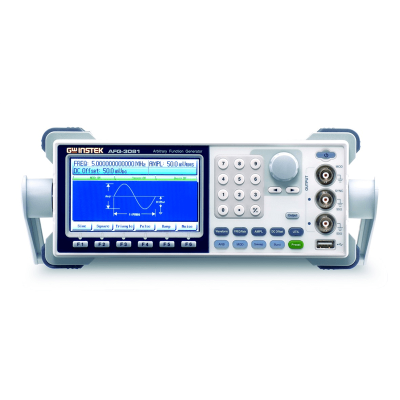

Instek AFG-3051 50MHz Arbitrary Function Generator
Product Details
-
Manufacturer: Instek
-
Model: AFG-3051
-
Description:
50MHz Arbitrary Function Generator
The AFG-3000 Series is arbitrary waveform generator designed for industrial, scientific research and educational applications. The series comes in bandwidths of 80MHz (AFG-3081) and 50MHz (AFG-3051) with built-in multiple standard waveforms to meet users’ diversified needs. The AFG-3000 Series also provides a high 16 bit resolution, 200MSa/s sample rate and a 1M memory depth for editing arbitrary waveforms directly through the intuitive user interface. The Direct Waveform Reconstruction (DWR) function enables users to directly import waveforms from a GDS-2000 Series oscilloscope to the AFG-3000 via USB host, allowing users to edit waveforms and enhance measurement efficiency. In addition, the AFG-3000 Series has switchable 50 Ohm and Hi-Z Impedances, built-in On-Screen Help for operation conveniently. Complete parameter settings and waveform can be displayed through 4.3-inch high-resolution TFT LCD. Through USB, RS-232, and GPIB, user can use dedicated PC software or IEEE488.2 commands to edit waveforms. // WIDE FREQUENCY RANGE FROM 1uHZ to 80/50MHz The AFG-3000 series arbitrary waveform/ function generator employs direct digital synthesis (DDS) technology to generate and output a variety of stable and precise waveforms. The frequency operates at up to 80MHz (AFG-3081) or 50MHz (AFG-3051), with a minimum resolution of 1uHz for the entire frequency range. The built-in standard waveforms include sine, square, triangle, ramp, pulse, noise and other types of waveforms. The Minimum 1uHz Resolution
Wide frequency range from 1uHz to 80/50MHz
High 200MSa/s sampling rate
16-bit Amplitude Resolution
Output from any section of 1M-point-long waveform
4.3 high resolution LCD display/on-screen help/Impedance switch
Four ways to generate arbitrary waveform: Front Panel Operation
CSV file uploading, Direct Waveform Reconstruction (DWR), Arbitrary
Waveform Editing PC Software
USB, RS-232, GPIB interface support
