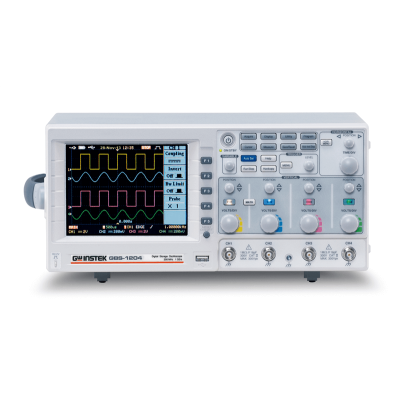

The GBS-1000 series, an economical selection of the four-channel DSO, offers three frequency ranges including 200,100, and 70MHz, real time sampling rate of 1 GSa/s, equivalent time sampling rate of 25GSa/s and 25k points memory depth. The GBS-1000 series has numerous features including 5.7" TFT color LCD display, 27 automatic measurements, FFT and FFTrms tests, 12-graticule horizontal display, Go/NoGo for predefined conditions, and flexible interface selections such as USB and RS 232. By using the USB interface, users can save waveform images and waveform data as well as carry out waveform printout. The diversified features have made the GBS-1000 series the number one choice of the economical four-channel oscilloscope.

200MHz/100MHz/70MHz Bandwidth Range
1GSa/s Real-time Sampling Rate and 25k Points Memory Depth
25GSa/s Equivalent Time Sampling Rate
2mV /div to 5V/div of Vertical Range
1ns/div to 10s/div of Time Base Range
5.7 inch TFT LCD Display
Data Log
USB Host: Flash drive storage and PictBridge-compatible printer
USB Device: PC remote control
27 Automatic Measurement Functions offer Direct Measurement Readings
FFT and FFTrms Computing Provides the Frequency Domain Analysis
