The Keysight M9170A is a one-slot PXI attenuator switch driver module that provides the flexibility to drive Keysights expansive portfolio of RF & microwave step attenuators and electromechanical switches. It is a PXI-hybrid compliant module that comes with a full-featured graphical interface soft front panel for easy control and trigger.

Maximize PXI chassis slot utilization, which ultimately improves testing efficiency

Ensure biasing compatibility with most switches on the market increases system flexibility

Select device models and the subsequent switch paths or attenuation levels

Intuitive configuration for all Keysight switches and attenuators

Drive up to 12 external SPDT switches, or 4 external SP4T/6T switches, or 12 transfer switches, or 2 external attenuators

Dual voltage supply of 5 V and 24 V and dual driving mode for pulse and continuous

Soft front panel provides a dynamic dashboard view and control of the connected attenuators or switches

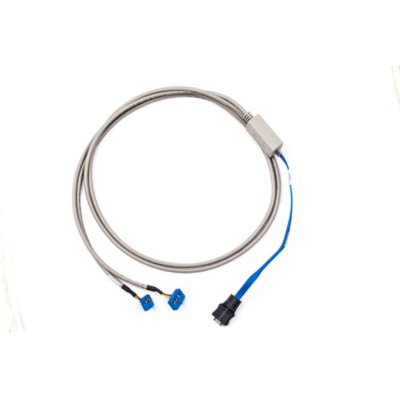

Point-to-point interface cable options available for connection between driver and switching device
