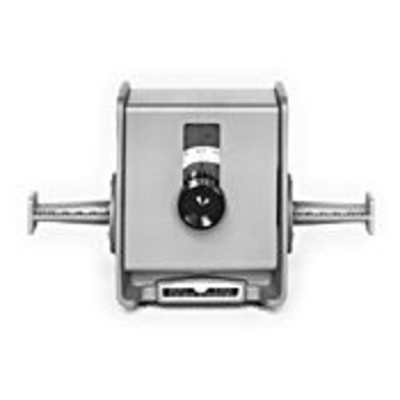

The attenuation value of this direct-reading, precision attenuator depends on the rotation angle of the resistive card, rather than on the resistivity value of the attenuating material. Therefore, it is insensitive to changes in temperature and humidity which can affect the resistive card of ordinary adjustable flap attenuators. The attenuation value is highly accurate and is stable from 0 to 50 dB. The instrument features large, easy-to-read dials, and can handle considerable microwave power. Frequency range: 12.4 to 18 GHzMaximum SWR: 1.15Attenuation accuracy: 0.2% or 0.1 dB (whichever is greater)Attenuation range: 0 to 50 dBMaximum power (CW): 5 WattsWaveguide designator: EIA WR-62 MIL-W-85/1-090Flange designator: UG-419/U MIL-F-3922/70A-008

Frequency range: 12.4 to 18 GHzMaximum SWR: 1.15Attenuation accuracy: 0.2% or 0.1 dB (whichever is greater)Attenuation range: 0 to 50 dBMaximum power (CW): 5 WattsWaveguide designator: EIA WR-62 MIL-W-85/1-090Flange designator: UG-419/U MIL-F-3922/70A-008
