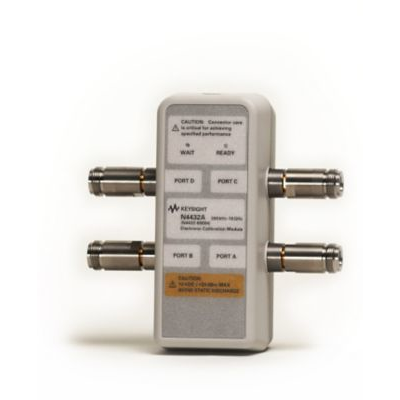

The Keysight N4432A Microwave electronic calibration (ECal) module makes calibration of vector network analyzers fast, easy, and accurate. ECal is a precision, single-connection calibration technique for your vector network analyzer. Performing a full three- or four-port calibration takes less than half the time and number of connections using ECal versus mechanical cal kits. Furthermore, the accuracy of the calibration is comparable to mechanical methods. Traditional mechanical calibrations require intensive operator interaction, which is prone to errors. With ECal, the operator simply connects the ECal module to the network analyzer and the software controls the rest.

ECal modules are transfer standards capable of transferring the factory calibration accuracy to your network analyzer. The Keysight PNA and ENA series of network analyzers controls the N4432A module directly through a USB interface. PNA Series network analyzers require firmware revision 2.5 or higher.

300 kHz to 18 GHz frequency range

Standard Type-N (f) connectors

Fast full 3- or 4-port calibration with a single connection

NIST traceable accurate calibrations

Reduced connector wear

USB interface for direct control with PNA and ENA series of network analyzers

Reliable solid-state switching

Mixed connectors option available (3.5 mm and Type-N)
