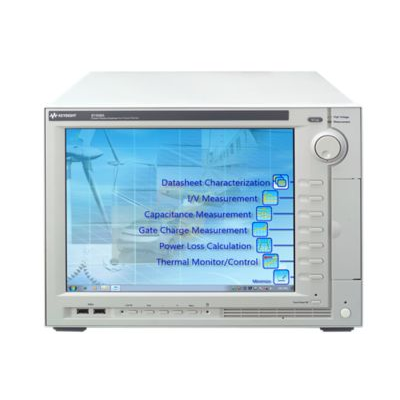

The B1506A Power Device Analyzer for Circuit Design is a complete solution that can help power electronic circuit designers maximize the value of their power electronics products by enabling them to select the correct power devices for their applications. It can evaluate all relevant device parameters under a wide range of operating conditions, including IV parameters such as breakdown voltage and on-resistance, as well as three terminal FET capacitances, gate charge and power loss.

The B1506A has a wide range of capabilities that help it identify substandard devices under actual circuit operating conditions, including a wide voltage and current range (3 kV and 1500 A), a wide temperature measurement range (-50C to +250C), fast pulsing capability, and Sub-nA level current measurement resolution. Its unique software interface presents the user with a familiar device data sheet format that makes it easy to characterize devices without going through any formal training. Integrated switching circuitry within the test fixture supports fully automated testing, with the ability to automatically change between both high voltage and high current testing as well as between IV and CV measurements.

In addition, a unique plug-in style device test fixture socket adapter eliminates cable connection and other human-related errors. The B1506A also supports the complete automation of thermal characterization. This can be accomplished either through the integrated Thermostream control or via the Thermal Plate. Since the DUT is in close proximity to the B1506As measurement resources, the large parasitics caused by cable extensions leading to a temperature chamber do not exist.

For this reason, oscillation free ultra-high currents of up to 1500 A can be accurately evaluated at both low and high temperature.

The B1506As capabilities revolutionize power electronics circuit design by both helping to maximize end product value and accelerating product development cycles.

There are three options available and you can choose the one that fits to your application.

B1506A-H21

20 A/3 kV/C-V/Gate Charge package

B1506A-H51

500 A/3 kV/C-V/Gate Charge package

B1506A-H71

1500 A/3 kV/C-V/Gate Charge package

Measures all IV parameters (Ron, BV, Leakage, Vth, Vsat, etc.)

Measure transistor input, output and reverse transfer capacitances (Ciss, Coss, Crss, Cies, Coes, Cres, Rg) at high bias voltages

Qg curve measurement

Power loss (conduction, driving and switching) evaluation

Easy to use and fully automated measurement

Data sheet characterization mode supports quick and easy evaluations of data sheet parameters

Wide operation I/V (1500A, 3kV)Thermal test ( -50C to +250C)

Oscilloscope View provides visual verification of pulsed measurement waveforms
