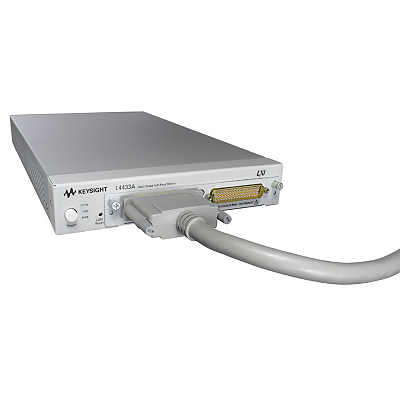

The Keysight L4433A offers a flexible connection path between your device under test (DUT) and your test equipment, allowing different instruments to be connected to multiple points on your (DUT) at the same time. This instrument can be configured as a single-wire matrix, increasing the number of crosspoints, while multiple matrices can be combined through the analog buses connector to create a larger matrix.

Standard 50-pin Dsub connectors allow for use with standard cables, terminal block, or mass interconnect solutions.

Also consider the 34980A 8-slot switch/measure unit that allows you to mix and match different modules into a low-cost, compact solution. Click here.

LXI compliance includes built-in Ethernet connectivity

Fully-featured graphical web interface

Dual 4×8, 8×8, or 4×16 2-wire configurations

64 2-wire or 128 1-wire cross-points

High-speed reed relays, Analog bus connection

Relay counter

150V peak, 0.5A switch, 1.5A carry current

Software drivers for most common programming environments
