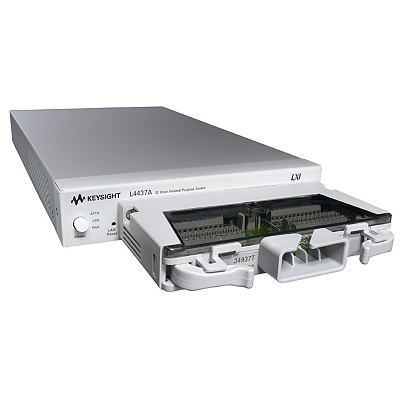

The Keysight L4437A is a general-purpose switch that has 28 independent single-pole, double-throw (SPDT) 1A relays and 4 single-pole, single-throw (Form A) 5A relays. These switches can be used to cycle power to products under test, control status lights, and actuate external power relays and solenoids. The Form C channels are 300V, 1A contacts and can handle up to 50W, and the Form A channels are 30VDC/250VAC, 5A contacts and can handle up to 150W.

Standard 50-pin Dsub connectors allow for use with standard cables, terminal block, or mass interconnect solutions.

Also consider the 34980A 8-slot switch/measure unit that allows you to mix and match different modules into a low-cost, compact solution. Click here.

LXI compliance includes built-in Ethernet connectivity

Fully-featured graphical web interface

28 Form C channels up to 1A, 50W

4 Form A channels up to 5A, 150W

Armature latching relays, Relay counter

Temperature sensor for overheating conditions

Simultaneous channel switching

Software drivers for most common programming environments
