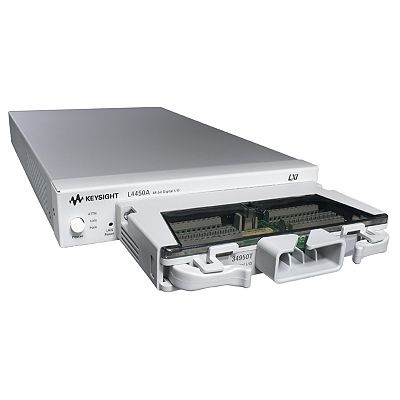

The Keysight L4450A has 64 bi-directional lines configured as eight 8-bit channels. The memory is useful for simulating and capturing digital patterns up to 10 MHz. It provides configurable handshaking protocols for a wide variety of applications.

In addition, the two counter/totalizer channels can be used to count events, frequency, period, duty cycle, totalize, and pulse width.

Standard 78-pin Dsub connectors allow for use with standard cables, terminal blocks, or mass interconnect solutions.

Also consider the 34980A 8-slot switch/measure unit that allows you to mix and match different modules into a low-cost, compact solution. Click here.

LXI compliance includes built-in Ethernet connectivity

Fully-featured graphical web interface

64 bi-directional digital I/O bits with programmable polarity

Variable thresholds from 0V to 5V

Source/sink current up to 24mA

128K pattern memory

2 10 MHz counter/totalizer channels

20 MHz divide by n clock, software drivers for most common programming environments
