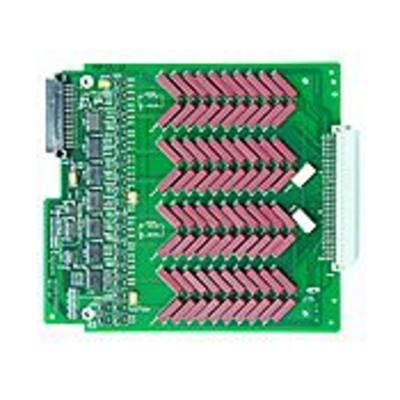

The Keysight N2266A is high speed, high-density reconfigurable multiplexer (MUX) module for high-throughput production test. It can be operated in either SCPI or 3488A mode. In the SCPI mode, it can be configured in any of the following ways:

one 80-channel, 1-wire MUX

one 40-channel , 2-wire MUX

dual independent 20-channel, 2-wire MUXs

one 20-channel, 4-wire MUX

A connection terminal is not provided with the N2266A module. A screw terminal block and a DIN96-to-DIN50/25 cables are available separately for ease of wiring.

See the new 34980A Multifunction Switch/Measure Unit as a new low-cost alternative.

Module Features

1A, 200V, Configurable for 1, 2, and 4-wire modes

Built-in relay cycle counters

High speed reed relays: 350 channels/sec

Thermal offset:
