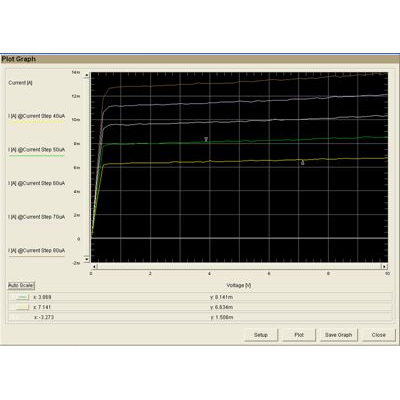

If you are looking for a basic yet complete IV curve tracer solution for component devices, then the new Keysight U2723P parametric measurement setup is up to the task. The included PMM Pro software and the U2723A USB modular source measurement unit work seamlessly to analyze discrete semiconductor such as diode, bipolar junction transistors (BJTs) and field effect transistors (FETs), then plots, displays and logs the results in the form of IV curve, without the need to write a single line of programming code.

View the demo to draw the I-V curve for diode

View the demo to draw the I-V curve for Bi-polar junction transistor

View the demo to draw the I-V curve for Field effect transistor

Product Status:U2723P begins discontinuance announcement on June 1, 2013. The last day to order is November 30, 2013.

You may order the U2723A USB modular source measure unit and download the FREE Parametric Measurement Manager Pro software online. Download the Parametric Measurement Manager Pro software today.

There-channel, four-quadrant source measure unit

+/- 20 V, +/- 120 mA DC source per channel

Intuitive GUI that is easy to configure and simplifies testing

User-defined test profiles, and predefined test profiles for diode, bipolar junction transistors and field effect transistors

Automatic test sequencing for parametric analysis

Get I-V curve for discrete component devices in minutes, without the needs on programming
