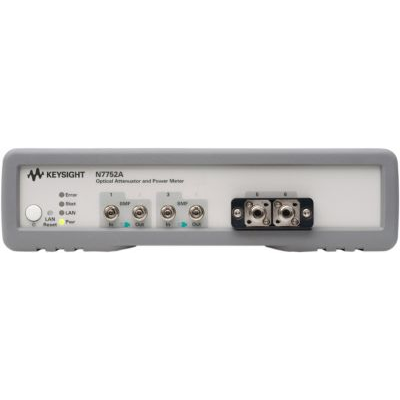

The Keysight N7752A combines an attenuator with 2 front-panel power meter channels, offering exceptional performance at a low price. The power meters permit measurements from any point in the measurements setup and assist in calibrating power offsets with respect to the attenuator output.

Extension of N77xx-series

The N7752A attenuator is an extension to Keysight’s high density N77xx-family that establishes a new standard in space-saving fiberoptic instrumentation.

Features and Benefits

Compact instrument combines and integrates multiple functions for setting attenuation and power levels and optical power measurement to reduce CAPEX and floor space.

Fast and precise setting of optical power levels with settling times of 100 ms for improved test throughput.

The power meters support convenient power offset calibration of the attenuators.

Active power control to keep output power constant

The multichannel attenuator sets and measures several ports at the same time and saves significant time characterizing multiport and multichannel components and network equipments.

The instrument can be controlled via LAN and USB, as well as GPIB for compatibility with existing equipment.

An easy-to-use and intuitive graphical user interface software speeds up the integration process.

Applications

Optical transceiver testing

Optical network integration testing

Measurement capability: attenuator

settling time: 20 ms attenuation, 100 ms power

0.1 to 1000 dB/s attenuation transition speed (selectable)

+23 dBm input power

_ 1.2 dB insertion loss

Measurement capability: power meter

Wavelength range: 1260-1640 nm

Power range: -80 to +10 dBm

Polarization dependence:
