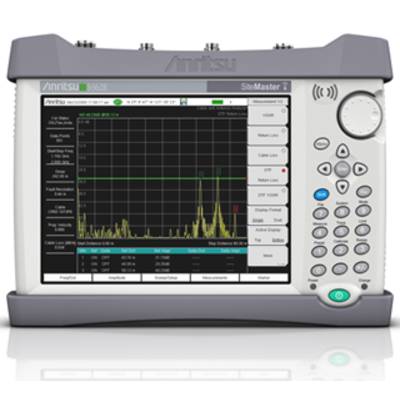

To keep up in today’s rapidly evolving wireless communications market, you need tools that enable you to efficiently maintain legacy networks in addition to the new 3G and 4G networks now being installed. And as the market continues to expand, you’re being required to service more base stations than ever before. This means completing sweeps quickly, performing calibrations instantly, and implementing fast trace naming while in the field. The S362E Site Master does all this by combining a cable and antenna analyzer with a spectrum analyzer into a single integrated device while delivering the ease of use, rich functionality, and best-in-class price/performance you’ve come to expect from Anritsu. Designed to handle the most punishing field conditions, the S362E Site Master integrated cable and antenna analyzer and spectrum analyzer dramatically enhances your productivity and transforms the traditional fix-after-failure maintenance model to one that allows you to identify and address minor problems before they become major ones.
Cable and Antenna Analyzer Highlights

Measurements: Return Loss, VSWR, Cable Loss, Distance-To-Fault, Phase
2-port Transmission Measurement: High/Low Power
Sweep Speed: 1 msec/data point, typical
Display : Single or Dual Measurement Touchscreen
Calibration: OSL, InstaCal, and FlexCal
Bias Tee: 32 V internal
Spectrum and Interference Analyzer Highlights
Measurements: Occupied Bandwidth, Channel Power, ACPR, C/I, Spectral Emission Mask
Interference Analyzer: Spectrogram, Signal Strength, RSSI, Signal ID
Dynamic Range: > 95 dB in 10 Hz RBW
DANL: -152 dBm in 10 Hz RBW
Phase Noise: -100 dBc/Hz max @ 10 kHz offset at 1 GHz
Frequency Accuracy: < 50 ppb with GPS On

In addition, easyTest Tools allows experienced users to Create, Deliver, and Display on-screen work instructions for Cable and Antenna testers.
These work instructions make life easier for less-experienced cable and antenna sweepers.
Direct benefits include more accurate testing, repeatable results, and less rework.
For more details see the easyTest Tools page.

Standard

Cable and Antenna Analyzer: 2 MHz – 6 GHz

Spectrum Analyzer: 9 kHz – 6 GHz

Return Loss, Cable Loss, VSWR, Distance-To-Fault, Smith Chart, 1-Port Phase

Field-proven design: Four-hour battery life, rugged, compact, lightweight, daylight viewable display

Intuitive menu-driven touch screen user interface

USB connectivity, built-in touch screen keyboard

Standard three-year warranty (battery one-year warranty)

Options

2-port Transmission Measurements

Internal Bias Tee

Ethernet

Gated Sweep

CW Generator

Interference Analyzer with Interference Mapping

High Accuracy Power Meter

Coverage Mapping, Channel Scanner, GPS, AM/FM/PM Analyzer
