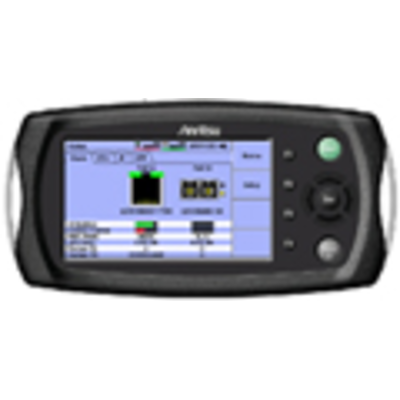

When outfitted with the Gigabit Ethernet module, the very compact battery-powered, easy-to-use Anritsu Network Master is a comprehensive solution for Gigabit Ethernet testing and for installation and troubleshooting Ethernet communication lines.
The instrument gives the user facilities for easy bandwidth verification, connectivity testing and service availability verification. The compact size and light weight of the instrument makes it very easy to carry around for field technicians working with the Ethernet lines. Despite the small size, the instrument is equipped with a large display so the user can easily read and interpret information from the tested lines off the large color display with easy-to-understand colors and graphical symbols. The graphical user interface also makes it a simple task to configure and operate the instrument.
Optical Transport Portfolio

Versatile, purpose-built solution for Gigabit Ethernet field testing
Comprehensive Ethernet testing for installation, maintenance and troubleshooting
Ping test, traceroute test and Electrical cable diagnostics
Two ports simultaneously work for shortening multiple ports installation, including pass through test and in-line monitoring test
Option for automated ITU-T Y.1564 testing, simultaneously testing of multiple traffic streams emulating real world networks
Option for automated RFC 2544 testing
Test Automator simplifies operation and ensure proper set-up
Channel Stats option identifies error streams, top talkers and network attack
Service disruption time measurement to test the performance of realtime applications like voIP and IPTV
Pass/Fail identification and graphical result display
Pdf and CSV report generation for documentation of test results
High resolution, widescreen color display that is easy to read indoors or out
Rugged design provides years of service for the users
Modular platform ensures maximum return on investment
Compact and lightweight design for maximum portability in the field
High performance without a high price

Option 001 : RFC 2544 Test Including End-To-End testing with master/slave control Option 002 : Multistream Up to 8 streams simultaneous testing Option 003 : Stacked VLAN Up to 3 levels tagged VLAN support Option 004 : MPLS Up to 3 MPLS labels support Option 005 : Remote GUI Controlling MT9090A via Web browser. Requires J1480A USB-Ethernet Converter to connect MT9090A to management Ethernet network Option 006 : Channel Stats Analyzing error streams, top talkers, network attacks Option 007 : Y.1564 Test New methodology to reduce testing time SFP 1000 M SX : 1000 Mbps SX SFP [850 nm multimode, LC connector] SFP 1000 M LX : 1000 Mbps LX SFP [1310 nm single mode, LC connector] SFP 1000 M ZX : 1000 Mbps ZX SFP [1550 nm single mode, LC connector] SFP 100 M FX : 100 Mbps FX SFP [1310 nm multimode, LC connector] SFP 100 M LX : 100 Mbps LX SFP [1310 nm single mode, LC connector] SFP 10/100/1000 M Electrical : 10/100/1000 Mbps RJ-45 SFP (electrical)
