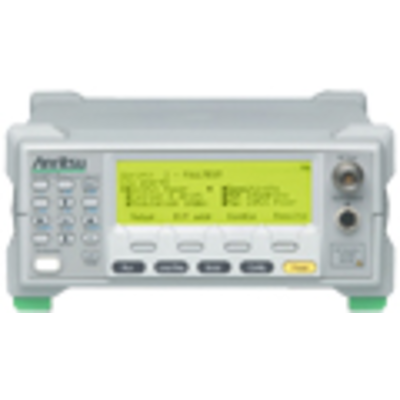

The Bluetooth Test Set MT8852B is the market-leading RF measuring instrument for design proving and production test of a wide range of products that integrate Bluetooth technology. It supports Basic Rate (BR), Enhanced Data Rate (EDR) and Bluetooth low energy (BLE) measurement of transmit power, frequency, modulation, and receiver sensitivity required by Bluetooth RF test specifications. In production, a single key press initiates a measurement script that tests a device in less than 10 seconds.

Measurements performed as defined in the Bluetooth RF Test Specification

Measurements performed in Bluetooth test mode – Loopback or Tx mode supported
Initialization and control of test devices through UART, USB or USB-Adaptor HCI control interface
Built-in support for Bluetooth low energy 2-Wire control interface
BR/EDR/Bluetooth low energy dirty transmitter for receiver sensitivity test cases

The MT8852B supports all three codec air interfaces (-Law, A-Law and CVSD) on up to three SCO audio channels. It offers comprehensive testing facilities integrated within a Bluetooth wireless technology test set. Rear-panel jack-plug connectors provide analog inputs and outputs for all three audio channels.

With the Bluetooth low energy option and BLE Data Length Extension option, MT8852B can conduct radio layer tests that comply fully with the newly adopted Bluetooth v4.2 standard. The extension of the data packet length in Bluetooth low energy from 37 octets to 255 octets increases the effective throughput of the system.
These Bluetooth low energy measurement options add six Bluetooth low energy test cases to the standard product. These test cases can be run as part of a test script so that test program creation is simplified and test times are minimized.

The Adaptive Frequency Hopping (AFH) option facilitates analysis of interference from, and co-existence with, interfering signals such as WLAN. This option provides graphical displays of FER and masked channels when interfering signals are introduced, allowing optimization of hardware designs.

The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Anritsu is under license.

Measurements performed as defined in the Bluetooth® RF Test Specification
Compliant with Bluetooth Core Specifications v1.2, 2.0, 2.1, 3.0+HS, 4.0, 4.1, and 4.2 UPDATED
Qualified by Bluetooth SIG for RF measurements
Supports eight Basic Rate and 6 EDR test cases
Supports six Bluetooth low energy test cases
Single script runs Basic Rate, EDR and Bluetooth low energy tests

Audio testing capability. Three SCO channels and CVSD, µ-Law and A-Law air interface
BlueSuite Pro3 software provides graphical traces of modulation, power ramp, individual channel measurements, and receiver sensitivity search
Adaptive Frequency Hopping (AFH) test function for Bluetooth devices
