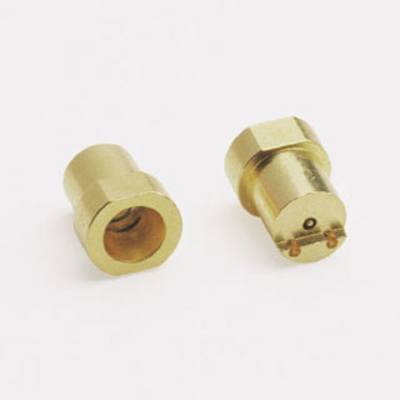

The VP Connectors are designed to be introduced into new defense programs, which require a smaller connector design, increased performance up to 65 GHz, and a low cost solution. These are also well suited for the 40Gbps Optical Communication Market which values the connector’s hermeticity and ease of installation. The VP100CMS10 offers improved soldering temperature performance of 350 C since the glass is directly fired into the shroud.Compensation for launch onto microstrip is designed into the connector. This greatly simplifies the mounting hole.The 0.24 mm (9.5 mil) center pin to microstrip interface is done using an Anritsu V110-1 Stress Relief Contact.

This product has been discontinued.
