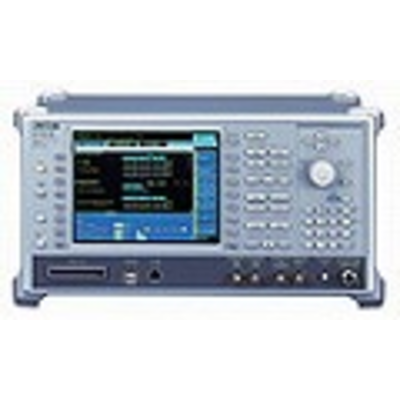

The MT8815B Radio Communication Analyzer is a multi-system test platform that covers W-CDMA/HSPA, GSM/GPRS/EGPRS, cdma2000 1x/1xEV-DO, and TD-SCDMA with just 1 unit. This platform supports detailed failure diagnosis and evaluation of all the main mobile device transmission/reception test items.

The MT8815B platform covers a frequency range of 30 MHz to 2.7 GHz. When optional measurement software and hardware is installed, the major Tx and Rx characteristics of W-CDMA/HSPA, GSM/GPRS/EGPRS, CDMA2000 1X, CDMA2000 1xEV-DO Rev.A, and TD-SCDMA wireless devices can be measured using a single MT8815B unit.

In the MT8815B, manufacturing and inspection test times have been dramatically cut by incorporating advanced DSP and parallel-measurement technologies. Furthermore, several measurement items can be selected freely for batch measurement, and the number of measurements for each measurement item can be configured separately. The one-touch operation supports easy and quick measurement of Tx and Rx characteristics, including transmit frequency, modulation accuracy, transmit power, spectrum emission mask, adjacent channel leakage power ratio, occupied bandwidth, and BER.

This product has been discontinued.Replacement Model(s) : MT8820C

1 : 2
1 : 2
1 : 2
Standards Supported : W-CDMA, HSDPA/HSUPA/HSPA+, CDMA (IS-95/CDMA2000/1xEV-DO), GSM, GPRS, EDGE, TD-SCDMA
426 (W) x 221.5 (H) x 351 (D) mm :
_17.8 kg (with all Options) : _26 kg (with all Options)
