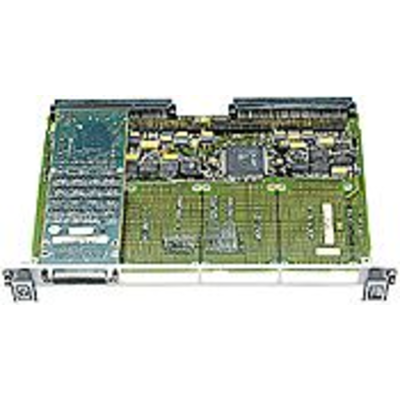

The Keysight E2250A B-size, 1-slot M-Module Carrier allows a VXI user the ability to cost effectively add small blocks of functionality. It provides backplane access to as many as four different M-Modules, each with independent addresses, plus the function and point count that exactly matches the customer’s system requirements. You can use up to 31 M-Modules with the E1306A Command Module, or use 255 M-Modules with embedded controllers or VXLink solutions. For additional data and addressing, the E2250A also supports MA-Modules for D32 and A32 capability.The carrier provides the electrical and mechanical interface between the VXIbus system backplane and the M-Modules. It also provides VXI register configuration, access to M-Module I/O and memory spaces, interrupt handling, triggering, and burst access capability. Additionally, it is in full compliance with VXI Specifications Revision 1.4.Each M-Module has its own address within the E2250A M-Module carrier, giving you the flexibility to use the M-Modules in many combinations. This flexibility allows you to get the amount of functionality you need in smaller blocks, lowering your overall system costs. Allows addition of functionality in small blocksSupports MA-Modules for additional addressing and data linesSupports up to four independent M-Modules or M-Modules simultaneouslyLogical addressing for each M-Module slotFully programmable interrupt and triggering control for each M-ModuleVXIplug&play Windows 95/NT and HP-UX frameworks supportedFor complete details, click on the Data Sheet linkWindows is a U.S. registered trademark of Microsoft Corporation.

-
