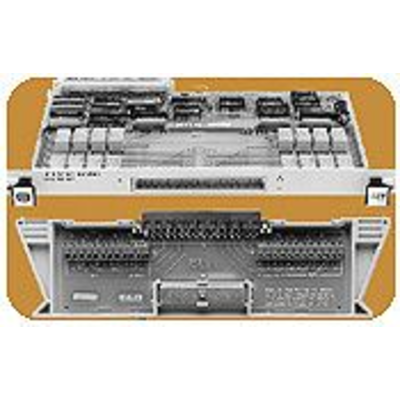

The Keysight E1361A Relay Matrix Switch is a B-size, 1-slot, register-based VXI module. It consists of 16 latching relays arranged as a 4 × 4 matrix. The 4 × 4 matrix can be reconfigured as a dual 2 × 4 matrix by removing factory-installed jumpers. Capable of switching voltages up to 250 Vdc and 354 Vpk, the E1361A Relay Matrix Switch has the highest voltage rating of any Keysight matrix module.All relays remain in their programmed state during power-down and are reset at power-on. After reset, all relays are open. Each crosspoint switches 2-wire, Hi and Lo. The E1361A can be reconfigured as an 8:1, 2-wire multiplexer. 1-Slot, B-size, register based VXIMultiple inputs connect to multiple outputsFlexible dual 2 × 4 or single 4 × 4 2-wire matrix250 V, 1 A dc or ac signal switching, latching relaysModules connect for larger matrixesEach crosspoint switches two-wire, Hi and Lo

-
