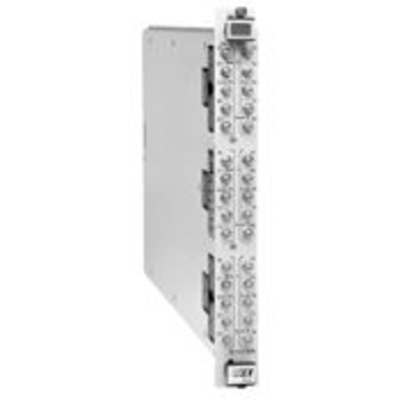

The Keysight E1472A 50 ohm RF Multiplexer is a C-size, 1-slot, register- based VXI module. It is the ideal choice to route test signals from your application to your test instruments (i.e., oscilloscope and spectrum, network, distortion analyzers, or other RF equipment). The E1472A is functionally identical to the E1474A except for output impedance.
The RF multiplexer can be used as six multiplexers or combined with others to form a larger tree-switched multiplexer or a limited stubless matrix. You can easily and inexpensively expand the E1472A via the E1473A 50 &ohm F multiplexer expander or via the E1475A 75 ohm RF multiplexer expander.
The E1472A can easily be programmed with SCPI commands to scan multiple channels, where each channel is switched to its common, one at a time. This module is arranged as six independent banks of channels (Bank 0 through Bank 5), each acting as a 1 × 4 one-wire multiplexer. Only one channel in each bank can be connected to its common at any time. The multiplexer relays are arranged in a tree-switched configuration, providing high isolation and low VSWR. Each channel consists of a non-latching armature relay.
1-Slot, C-size, register based
Six 1 × 4 multiplexers
Switch signals up to 1.3 GHz
SMB male connectors for high performance
Controls E1473A/E1475A RF expanders
Tree-switching for high isolation, low VSWR
