Signal Analysis will never be the same again

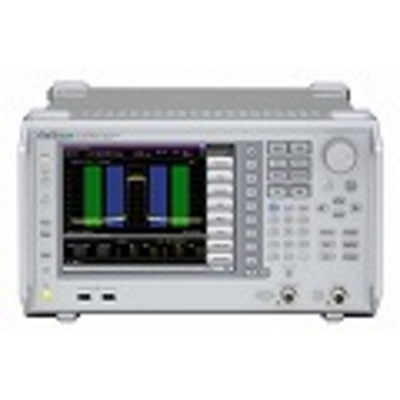

MS269xA Series Signal Analyzers are the latest high performance signal analyzers for next-generation communication applications. The MS269xA Series Signal Analyzer base units include swept spectrum analysis, FFT signal analysis, and a precision digitizer function. Add options to incorporate a Signal Generator, to turn the instrument into a hassle free, plug and play, one box solution.The MS269xA Series Signal Analyzers support a standard analysis bandwidth of 31.25 MHz that can be extended to 62.5 MHz /125 MHz with optional hardware. Using a patented calibration process, the multipoint amplitude calibration and the phase calibration result in a level accuracy of 0.5 dB across a 6 GHz span. No other analyzer on the market can meet that specification! These boxes are superlative in every way — they measure the widest signals and using the latest technology, make measurements faster than ever before. The modular architecture ensures a box that grows as measurement requirements change.

A series of options enables standards-based modulation analysis, vector signal generation, and BER measurement. The end-user can configure a one-box solution that dramatically reduces cost, footprint, and Total Average Cycle Time (TACT) for device evaluation.

The MS269xA Series Signal Analyzers are accurate enough for the most demanding R&D environment, yet are fast enough for the factory floor! Currently supported applications include GSM, GPRS, EDGE, W-CDMA, mobile WiMAX, and LTE.

The wideband FFT signal analyzer (analysis bandwidth of 31.25 MHz with option for 62.5 MHz /125 MHz) supports high-speed continuous measurements including CCDF, frequency vs. time, spectrum, and power vs. time analysis. The standard digitizing function can capture waveforms and immediately play them out using the optional Signal Generator. An extended digitizer option adds the ability to capture signals up to 20 MHz wide for up to 4 hours.

Frequency Range: 50 Hz to 13.5 GHz
Analysis Bandwidth

31.25 MHz (Standard)
62.5 MHz / 125 MHz (Option)

One-Box Tester with the addition of the Signal Generator option
Batch Capture Measurements for the fastest
analysis time

Basic Digital Signal Analysis Vector Modulation Analysis Software 3GPP 2G and 3G Analysis GSM/EDGE Measurement Software EDGE Evolution Measurement Software W-CDMA/HSPA Downlink Measurement Software W-CDMA/HSPA Uplink Measurement Software TDMA IQproducer HSDPA/HSUPA IQproducer W-CDMA BTS Testing W-CDMA BS Measurement Software LTE FDD Analysis LTE Downlink Measurement Software LTE-Advanced FDD Downlink Measurement Software LTE Uplink Measurement Software LTE IQproducer LTE-Advanced FDD Option LTE TDD Analysis LTE TDD Downlink Measurement Software LTE-Advanced TDD Downlink Measurement Software LTE TDD Uplink Measurement Software LTE TDD IQproducer LTE-Advanced TDD Option Mobile WiMAX Analysis Mobile WiMAX Measurement Software Mobile WiMAX IQproducer 3GPP2 Analysis EV-DO Forward Link Measurement Software All Measure Function NEW 1xEV-DO Reverse Receiver Test Waveform Pattern NEW CDMA2000 Forward Link Measurement Software All Measure Function NEW DigRF 3G RFIC Testing Digital I/F Control Software for DigRF2.5G/3G UMTS Measurement Software for RF Device Test ETC/DSRC Analysis ETC/DSRC Measurement Software TD-SCDMA Analysis TD-SCDMA Measurement Software Composite Waveforms for Signal Generator option Multi-Carrier IQproducer WLAN Analysis WLAN (802.11) Measurement Software 802.11ac (160 MHz) Measurement Software WLAN IQproducer 802.11ac (80 MHz) Option Rubidium Reference Oscillator Aging rate 1 10-10/month Wideband Analysis Hardware Extends the Analysis Bandwidth to 125 MHz Analysis Bandwidth Extension Extends the Analysis Bandwidth to 62.5 MHz / 125 MHz 6 GHz Preamplifier 100 kHz to 6 GHz Vector Signal Generator 125 MHz to 6 GHz Baseband Interface Unit For testing DigRF 3G RFIC interfaces only HDD Digitizing Interface Used for the Extended digitizer _ collect data for 4 hours Extension of Preselector Lower Limit to 3 GHz Extends lower limit of pre-selector to 3 GHz Noise Figure Measurement Function Y-factor method using a Noise Source
