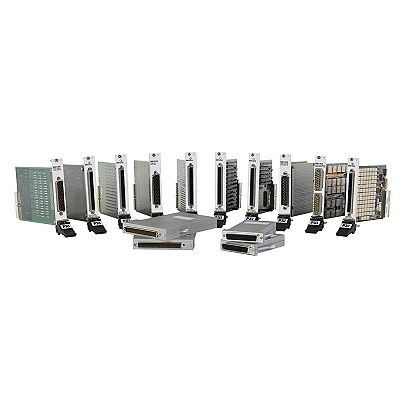

The M9130A is a general purpose switch with 26 independent, single-pole, double-throw (Form C) switches in a single PXI module. This module can be used to cycle power to products under test, control indicator and status lights or actuate external power relays and solenoids. The armature relays can handle up to 60W power. When needed, these relays can handle up to 6A pulsed carry current. Choose from the durable connector block or standard cable connections.

Software drivers support most common programming environments such as Visual Studio, C, C++, C#, Visual Basic, MATLAB and LabVIEWTM. The high-quality switches with durable connections ensure trustworthy measurements. Installation and configuration are fast and easy with Keysight Connection Expert and soft front panels.

Visual Studio is a registered trademark of Microsoft Corporation in the United States and/or other countries.
MATLAB is a U.S. registered trademark of The Math Works, Inc.
LabVIEW is a registered trademark of National Instruments.

Applications

General purpose switching to control external devices or switch in loads or power supplies

Functionality

26-channel SPDT switch

2A switch/carry current

60W max power

Performance characteristics

Durable, armature relays

2A carry current
