Today’s telecommunications and computer systems increasingly take advantage of devices such as laser and IR diodes, EEPROMS and flash memories which operate at high voltages or currents.

Fast, clean positive or negative pulses up to 100 V at frequencies up to 15 MHz

User-definable limits for voltage, current and duty cycle

TLL input: allows the output to be enabled or disabled

Transitions < 12 ns for high impendance source into 50 Ohm load. Baseline OV.

In 50 Ohm/50 Ohm mode, the maximum voltage is 50 Vpp with transitions < 7ns

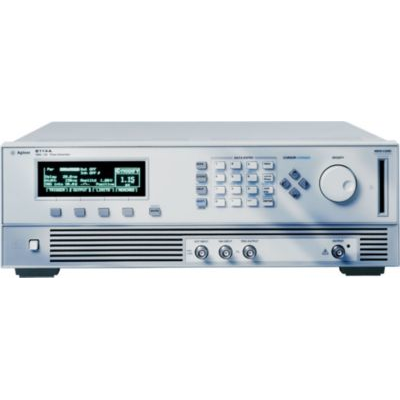

Single-channel high power pulse generator

15 MHz

50 Vpp 50 ? / 50 ?

Max. amplitude 100 V (HI-Z/50 ?)

Max. current 2 A (HI-Z/50 ?)

Voltage, current, and duty cycle protection

Optional baseline shift of +/- 25 V
