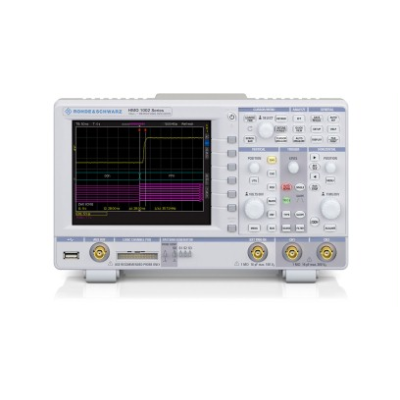

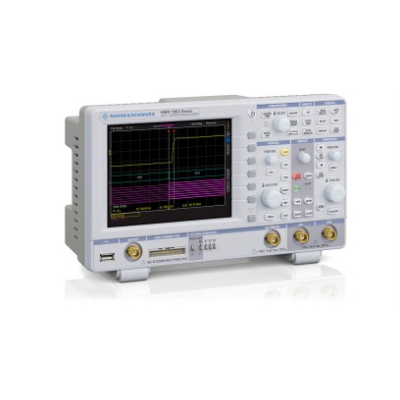

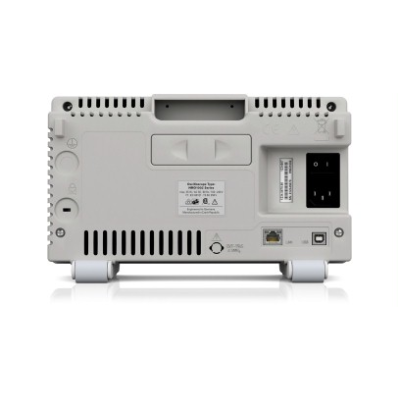

High sensitivity, multifunctionality and a great price – that is what makes the R&S®HMO1002 digital oscilloscope so special. From embedded developers to service technicians to educators – with its wide range of functions, the R&S®HMO1002 addresses a broad group of users. Advanced, powerful technology in a fanless design meets the high requirements of today's customers. The R&S®HMO1002 digital oscilloscope includes a wide range of upgrade options, providing true investment protection for the future.

The R&S®HMO1002 digital oscilloscope from the Rohde & Schwarz Value Instruments product range features a high waveform update rate and high vertical sensitivity, and is available with bandwidths of 50 MHz, 70 MHz and 100 MHz. The fanless instrument offers a sampling rate of 1 Gsample/s and a memory depth of 1 Msample.

Like all R&S®HMOx oscilloscopes, the R&S®HMO1002 includes the mixed signal function as standard. The separately available R&S®HO3508 logic probe is not coupled to a specific instrument and can be used with all R&S®HMO oscilloscopes.

For communications between embedded systems and the environment, the R&S®HMO1002 includes hardware-based signal triggering and decoding for all common protocols (I2C, SPI, UART, CAN and LIN). This option can be activated with an upgrade voucher at any time.

The integrated pattern generator for generating protocol messages at up to 50 Mbit/s is ideal for embedded users. In addition to using predefined messages, developers can program their own signal patterns for supported serial protocols

The integrated three-digit digital voltmeter enables service technicians to simultaneously perform voltage measurements on both analog channels with two values each.

The function generator that generates different types of signals with frequencies up to 50 kHz is useful in educational settings. Trainees and students can use the R&S®HMO1002 to learn basic measurement tasks. In education mode, the convenience functions can be switched off.

Thanks to 128k test points and analysis functions in the frequency domain, the R&S®HMO1002 keeps pace with significantly larger oscilloscopes. The time domain signal, measurement window, FFT analysis range and measurement result are displayed on a single screen, which makes it easier to measure the spectra.

The R&S®HMO1002 offers time domain, logic, protocol and frequency analysis in a single instrument and is a member of the Rohde & Schwarz family of scope-of-the-art oscilloscopes.

• 1 Gsample/s sampling rate, 1 Msample memory depth
• High vertical sensitivity down to 1 mV/div
• High acquisition rate to identify signal faults
• Mixed signal function as standard
• Serial bus analysis: hardware-based triggering and decoding
• The right signal at hand: pattern generator up to 50 Mbit/s and function generator up to 50 kHz
• Voltmeter measurements using an oscilloscope
• Wide selection of automatic measurement functions
• QuickView: key results at the push of a button
• FFT: the easy way to analyze the signal spectrum

HV572 - 70Mhz

HV512 - 100Mhz
