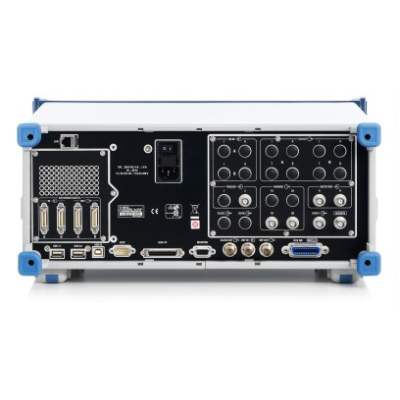

The R&S AMU200A baseband signal generator and fading simulator has been designed to meet all requirements encountered in the research and development of modern communications systems as well as in their production. The R&S AMU200A not only combines up to two independent baseband signal generators in one cabinet of only four height units, but also offers unrivaled channel simulation capabilities. Due to its modular design, the generator can be optimally adapted to the requirements of different applications.Due to its modular design, the R&S AMU200A can be optimally adapted to the requirements of different applications. Up to two generators can be installed. They generate complex signals in realtime and are equipped with an arbitrary waveform generator with 16 Msample, 64 Msample, or 128 Msample memory for I and Q and four marker bits per sample. The signals generated in the different basebands can be added, even with frequency, phase, and level offset. The modern, intuitive concept of the R&S AMU200A ensures fast and easy operation.The R&S AMU200A can be fitted with a wide range of options for example, options for all of today’s important digital standards as well as function and performance enhancements such as MIMO fading. For a list of all available options as well as links to detailed information about the individual options, see “options” page.MIMO fadingWith its two independent baseband generators and the capability to simulate up to four fading Channels, the R&S AMU200A can handle enhanced MIMO testing. A 2×2 MIMO fading test can be performed easily with just one instrument. By combination of multiple instruments all other MIMO modes such as 1 _3, 1 _4, 2 _3, 3 _1, 4 _1, 3 _2 as well as 4 _2 can also be set up. The R&S AMU200A is suitable for baseband measurements on MIMO systems under any of these scenarios.

Single-path or dual-path instrument
Up to two complete baseband paths
Configuration as a fading simulator, an I/Q source, or an all-in-one instrument offering fading simulation and signal generation
2 _2 MIMO with realtime fading possible
Two instruments combinable for 2 _4 or 4 _2 MIMO
Baseband generators with universal coders for realtime signal generation
Arbitrary waveform generators with 16 Msample, 64 Msample, or 128 Msample memory depth
Support of 3GPP LTE FDD and TDD, 3GPP FDD/HSPA/HSPA+, GSM/EDGE/EDGE Evolution, TD-SCDMA, WLAN, WiMAX and all other important digital standards
Analog single-ended, analog differential, and digital baseband outputs
Lossless combination of up to four baseband signals in the digital domain (e.g. for testing multistandard base stations)

R&S AMU200A : Baseband Signal Generator and Fading Simulator
R&S AMU-B9 : Baseband Generator with ARB (128 Msample) and Digital Modulation (realtime)
R&S AMU-B10 : Baseband Generator with ARB (64 Msample) and Digital Modulation (realtime)
R&S AMU-B11 : Baseband Generator with ARB (16 Msample) and Digital Modulation (realtime)
R&S AMU-B13 : Baseband Main Module
R&S AMU-B16 : Differential I/Q Output
R&S AMU-B17 : Baseband I/Q Input (digital/analog)
R&S AMU-B18 : Baseband Digital I/Q Output
R&S AMU-K40 : Digital Standard GSM/EDGE
R&S AMU-K41 : Digital Standard EDGE Evolution
R&S AMU-K42 : Digital Standard 3GPP FDD
R&S AMU-K43 : 3GPP Enhanced MS/BS Tests incl. HSDPA
R&S AMU-K44 : Digital Standard GPS
R&S AMU-K45 : Digital Standard HSUPA
R&S AMU-K46 : Digital Standard CDMA2000 incl. 1xEV-DV
R&S AMU-K48 : Digital Standard IEEE 802.11 (a/b/g)
R&S AMU-K49 : Digital Standard IEEE 802.16
R&S AMU-K47 : Digital Standard 1xEV-DO Rev. A
R&S AMU-K50 : Digital Standard TD-SCDMA
R&S AMU-K51 : Digital Standard TD-SCDMA Enhanced
R&S AMU-K52 : Digital Standard DVB-H
R&S AMU-K53 : Digital Standard DAB / T-DMB
R&S AMU-K54 : Digital Standard IEEE 802.11n
R&S AMU-K55 : Digital Standard EUTRA/LTE
R&S AMU-K57 : Digital Standard FM Stereo/RDS
R&S AMU-K59 : Digital Standard HSPA+
R&S AMU-K60 : Digital Standard Bluetooth EDR
R&S AMU-K61 : Multicarrier CW Signal Generation
R&S AMU-K65 : Assisted GPS
R&S AMU-K68 : Digital Standard TETRA Release 2
R&S AMU-K69 : LTE Closed-Loop BS Test
R&S AMU-K81 : LTE Logfile Generation
R&S AMU-K84 : LTE Release 9 + Enhanced Features
R&S AMU-K85 : LTE Release 10 / LTE-Advanced
R&S AMU-K86 : Digital Standard IEEE 802.11ac
R&S AMU-K87 : 1xEV-DO Rev. B
R&S AMU-K240 : Digital Standard GSM/EDGE
R&S AMU-K241 : Digital Standard EDGE Evolution
R&S AMU-K242 : Digital Standard 3GPP FDD
R&S AMU-K243 : 3GPP Enhanced MS/BS Tests incl. HSDPA
R&S AMU-K244 : Digital Standard GPS
R&S AMU-K245 : Digital Standard HSUPA
R&S AMU-K246 : Digital Standard CDMA2000 incl. 1xEV-DV
R&S AMU-K247 : Digital Standard 1xEV-DO Rev. A
R&S AMU-K248 : Digital Standard IEEE 802.11 (a/b/g)
R&S AMU-K249 : Digital Standard IEEE 802.16
R&S AMU-K250 : Digital Standard TD-SCDMA
R&S AMU-K251 : Digital Standard TD-SCDMA Enhanced
R&S AMU-K252 : Digital Standard DVB-H
R&S AMU-K253 : Digital Standard DAB/T-DMB
R&S AMU-K254 : Digital Standard IEEE 802.11n
R&S AMU-K255 : Digital Standard EUTRA/LTE
R&S AMU-K259 : Digital Standard HSPA+
R&S AMU-K260 : Digital Standard Bluetooth EDR
R&S AMU-K261 : Multicarrier CW Signal Generation
R&S AMU-K262 : Additive White Gaussian Noise (AWGN) using R&S WinIQSIM2
R&S AMU-K268 : Digital Standard TETRA Release 2
R&S AMU-K284 : LTE Release 9 + Enhanced Features
R&S AMU-K285 : LTE Release 10 / LTE-Advanced
R&S AMU-K286 : IEEE 802.11ac
R&S AMU-K287 : 1xEV-DO Rev. B
R&S AMU-K6 : Pulse Sequencer
R&S AMU-B14 : Fading Simulator
R&S AMU-B15 : Fading Simulator Extension
R&S AMU-K71 : Dynamic Fading and Enhanced Resolution
R&S AMU-K72 : Enhanced Fading Profiles
R&S AMU-K74 : MIMO fading
R&S AMU-K77 : Dynamic Scenario Simulation
R&S AMU-K62 : Additive White Gaussian Noise (AWGN)
R&S AMU-K80 : BER/BLER Measurement
R&S AMU-B81 : I/Q Rear Connectors
AMU200A-Manuals_English, UK : R&S AMU200A – Hardcopy Manuals (in English, UK)
AMU200A-Manuals_English, USA : R&S AMU200A – Hardcopy Manuals (in English, USA)
R&S ZZA-411 : 19" Rack Adapter
R&S ZZA-T45 : Adapter for Telescopic Sliders
R&S SMU-Z5 : BNC Adapter Board for AUX I/O Connector
R&S AMU-Z7 : Analog I/Q Combiner (including USB cable and operating manual)
R&S PSL-Z2 : USB Keyboard (US character set)
R&S PSL-Z10 : Optical mouse with USB Interface
