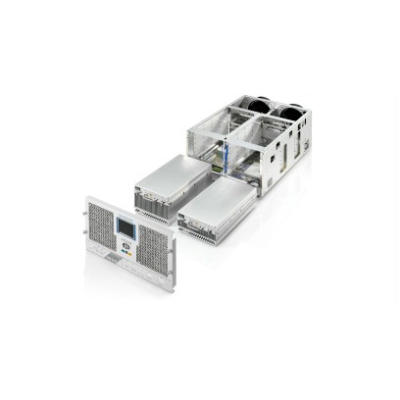

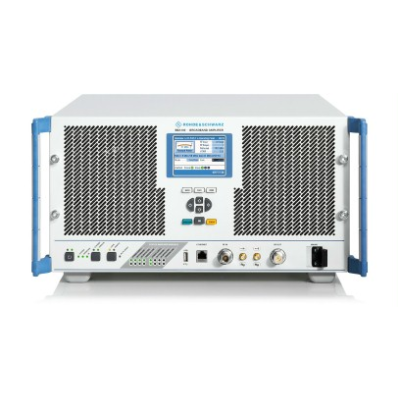

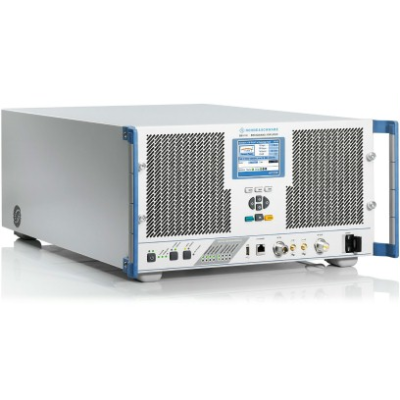

The R&S BBA100 is a family of modular, flexible, state-of-the-art broadband amplifiers. The monitoring and control options allow the setup of very compact systems. R&S BBA100 “grows” with the requirements. The instrument can be upgraded, thereby providing maximum investment protection and readiness for the future.The R&S BBA100 broadband amplifiers are suitable for a variety of applications in EMC environments, communications, research and physical engineering. They are optimally scalable and configurable. Due to their modular design, the amplifiers can be tailored to meet specific requirements with regard to output power and Frequency range. Even in its basic version the 5 HU 19" base unit includes a powerful system controller that controls the installed Frequency bands (RF paths), switches the associated components (input switches, preamplifiers, sample port switches, output switches) and monitors the system.The user interface (both on the instrument and via web browser) allows efficient operation, and various remote control interfaces make it possible to integrate the amplifier into automated environments and systems. Extension units accommodate additional amplifier units, allowing the R&S BBA100 to be expanded into a system featuring higher power and/or multiple Frequency bands.

Frequency range from 9 kHz to 1 GHz
Output power up to 1.700 W
100% mismatch tolerance
Suitable for amplitude, Frequency, phase and pulse modulation
Software-updatable system controller with versatile control and configuration options
Wide-range AC power supplies
Three-year warranty

R&S BBA100 : Broadband Amplifier
R&S BBA-K101 : GPIB Remote Control
R&S BBA-K102 : USB Remote Control
R&S BBA-K103 : Ethernet Remote Control
R&S BBA-B104 : Optical Ethernet Remote Control
R&S BBA-B110 : RF Input Switch
R&S BBA-B120 : RF Output Switch 2:1 or 1:2 (N, max. 500 W)
R&S BBA-B121 : RF Output Switch 2:1 or 1:2 (7/16, max. 2000 W)
R&S BBA-B130 : Fast Amplifier Mute
R&S BBA-B131 : External Amplifier Integration
R&S BBA-B132 : DC Block Input Protection (SMA rear)
R&S BBA-B132 : DC Block Input Protection (N front)
R&S BBA-B140 : RF Forward/RF Reflected Sample Ports (SMA front)
R&S BBA-B140 : RF Forward/RF Reflected Sample Ports (SMA rear)
R&S BBA-B141 : Detected Forward/Detected Reflected Sample Ports (SMA front)
R&S BBA-B141 : Detected Forward/Detected Reflected Sample Ports (SMA rear)
R&S BBA-B142 : RF Sample Port Switch (dual port, SMA front)
R&S BBA-B142 : RF Sample Port Switch (dual port, SMA rear)
