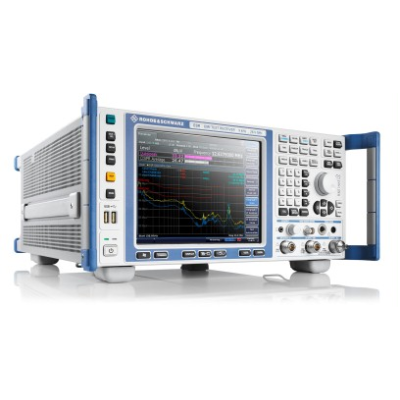

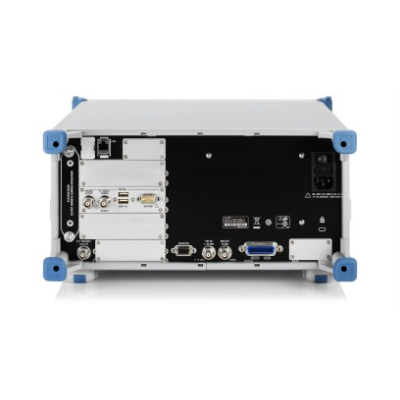

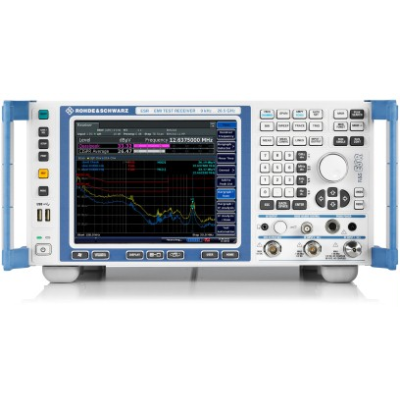

The R&S ESR is an EMI test receiver for the Frequency range from 10 Hz to 26.5 GHz and complies with the CISPR 16-1-1 standard. It measures electromagnetic disturbances with the conventional stepped Frequency scan or at an extremely high speed with an FFT-based time domain scan. At the same time, the R&S ESR functions as a full-featured, powerful signal and spectrum analyzer for lab applications. Featuring realtime spectrum analysis capability with a wide range of diagnostic tools, the test receiver also enables detailed analysis of disturbance signals and their history. The R&S ESR comes with clearly structured menus and an intuitive touchscreen, making it very easy to operate in any mode.

EMI test receiver and signal/spectrum analyzer combined in a single instrument
Compliant with CISPR 16-1-1 Ed. 3.1
Preselection with integrated 20 dB preamplifier
Resolution Bandwidths in line with CISPR and optionally in decade steps from 10 Hz to 1 MHz(MIL STD-461, DO-160)
Ultrafast time domain scan (option) or conventional stepped Frequency scan
Realtime spectrum analysis with up to 40 MHz span for detailed investigation of disturbances (option)
Time domain display with high resolution (50 ?s)
Automatic test routines
IF analysis (option)

R&S ESR : EMI Test Receiver
R&S ESR-K53 : Time Domain Scan (requires R&S ESR-B50)
R&S ESR-K55 : Realtime Analysis (requires R&S ESR-B50)
R&S ESR-K56 : IF Analysis
R&S ESR-B1 : Ruggedized Housing (corner guards and front panel cover) for R&S ESR
R&S FSV-B4 : OCXO, Precision Reference Frequency
R&S FSV-B4 : OCXO, Precision Reference Frequency Stability
R&S FSV-B9 : Tracking Generator 100 kHz to 4 GHz/7 GHz
R&S ESR-B18 : Solid State Drive (SSD, removable)
R&S ESR-B19 : Spare Hard Disk Drive (HDD, removable)
R&S FSV-B22 : Preamplifier, 9 kHz to 4 GHz/7 GHz
R&S ESR-B29 : Frequency Extension 10 Hz, including EMI Bandwidths in decade steps
R&S FSV-B30 : DC Power Supply for 12 V supply voltage
R&S FSV-B32 : Lithium-Ion Battery Pack
R&S FSV-B34 : Charger for R&S FSV-B32 lithium-ion battery pack
R&S ESR-B50 : Hardware for Time Domain Scan and Realtime Analysis
R&S ES-SCAN : EMI Software
R&S EMC32-EB : EMI measurement software, version 9
R&S EMC32-K10 : EMI Auto Test
R&S EMC32-K11 : EMC Test Sequencer
R&S EZ-27 : Adapter for LISN control cable
