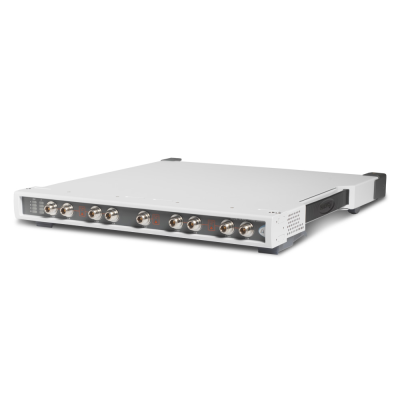

The SCO is a high performance 4-input combiner/switch module to complement the S-Series signal generators. The SCO simplifies tests which require multiple sources, particularly for the testing of receivers, amplifiers and mixers. For receiver testing, sensitivity, selectivity, blocking and intermodulation require at least two sources, sometimes more if additional interferers are required.

To achieve the best possible intermodulation performance, careful attention has been paid to the VSWR of all ports. The use of reactive (hybrid) combiners ensures high isolation between input ports, minimizing the effect of the output of one signal source modulating the output of another signal source.

Wide band cover:
SCO-6 – 1 MHz to 6 GHz
Plug & Play operation under the control of an SGA simplifies test configuration
AerolockTM interlocking mechanism for test system creation

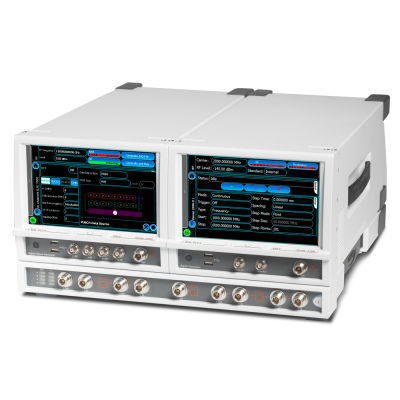

Combine the outputs of up to four S-Series signal generators to support all multisource applications
Combine the outputs of two S-Series signal generators via a low-loss combined path for higher output
Direct low-loss outputs for each signal generator for LO substitution or mixer testing
Supports many applications including mixer testing, receiver selectivity, intermodulation distortion
Powered from USB 2.0
