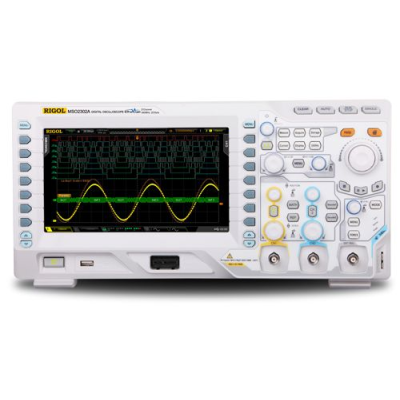

The MSO2000A series digital oscilloscope is another Best-In-Class instrument from Rigol offering an unmatched feature/value package. The MSO2000A is a fast and versatile scope covering frequencies up to 300 MHz with two channels and a wide vertical range (500uV/div-10V/div) to deliver an extremely low noise floor to help you capture smaller signals. Add a 2 GSa/s max. sample rate and 14 Mpts. of standard memory depth to its user-friendly interface and 8 inch WVGA display and you’ve got a scope that outperforms the competition in a wide range of bench-top and field applications. The MSO2000A series also includes 16 bit of mixed signal logic channels as well as an option for an embedded 2 channel, 25 MHz waveform generator.

Wider vertical range(500uV/div ~ 10V/div), lower noise floor, better for small signal capturing
Full bandwidth, lower overshoot(
70MHz Bandwidth
16 bit digital inputs for mixed signal applications with 1 GSa/s sampling
Max. Sample Rate 2G Sa/s
Standard Memory Depth up to14Mpts,Optional Memory Depth up to 56Mpts
Innovative “UltraVision” technology
Integrated 2 channel, 25 MHz generator
50 Ohm Impedance included

Bandwidth : 1 GHz
Analog Channels : 4
Vertical Sensitivity : 2 mV/div – 10V/div
Real-time Sample Rate : 5 GSa/s_single channel mode__2.5 GSa/s_dual channel mode_
Memory Depth : 140 Million Points
Waveform Acquisition Rate : 180,000 Waveforms per Second
Standard Interface : USB Host & Device, VGA, LXI, Trig Out, 10 MHz In/Out
Vertical Resolution : 8 bits
Math : _, _, , FFT, customizable user defined
Cursor Measurements : Manual, Track and Auto Measure modes
Bandwidth : 1 GHz
Analog Channels : 2
Vertical Sensitivity : 2 mV/div – 10V/div
Real-time Sample Rate : 5 GSa/s_single channel mode2.5 GSa/s_dual channel mode
Memory Depth : 140 Million Points
Waveform Acquisition Rate : 180,000 Waveforms per Second
Standard Interface : USB Host & Device, VGA, LXI, Trig Out, 10 MHz In/Out
Vertical Resolution : 8 bits
Math : _, _, , FFT, customizable user defined
Cursor Measurements : Manual, Track and Auto Measure modes
Bandwidth : 600 MHz
Analog Channels : 4
Vertical Sensitivity : 2 mV/div – 10V/div
Real-time Sample Rate : 5 GSa/s_single channel mode2.5 GSa/s_dual channel mode
Memory Depth : 140 Million Points
Waveform Acquisition Rate : 180,000 Waveforms per Second
Standard Interface : USB Host & Device, VGA, LXI, Trig Out, 10 MHz In/Out
Vertical Resolution : 8 bits
Math : _, _, , FFT, customizable user defined
Cursor Measurements : Manual, Track and Auto Measure modes
Bandwidth : 600 MHz
Analog Channels : 2
Vertical Sensitivity : 2 mV/div – 10V/div
Real-time Sample Rate : 5 GSa/s_single channel mode2.5 GSa/s_dual channel mode
Memory Depth : 140 Million Points
Waveform Acquisition Rate : 180,000 Waveforms per Second
Standard Interface : USB Host & Device VGA, LXI, Trig Out, 10 MHz In/Out
Vertical Resolution : 8 bits
Math : _, _, _, FFT, customizable user defined
Cursor Measurements : Manual, Track and Auto Measure modes
Model : MSO4054
Analog Channels : 4
Digital Logic Channels : 16
Frequency : 500 MHz
Memory Depth : 140 Million Points (analog); 28 Mpts (digital)
Waveform Acquisition Rate : 110,000 Waveforms per Second (analog); 85,000 Wfms/sec (digital)
Model : MSO4052
Analog Channels : 2
Digital Logic Channels : 16
Frequency : 500 MHz
Memory Depth : 140 Million Points (analog); 28 Mpts (digital)
Waveform Acquisition Rate : 110,000 Waveforms per Second (analog); 85,000 Wfms/sec (digital)
Model : MSO4034
Analog Channels : 4
Digital Logic Channels : 16
Frequency : 350 MHz
Memory Depth : 140 Million Points (analog); 28 Mpts (digital)
Waveform Acquisition Rate : 110,000 Waveforms per Second (analog); 85,000 Wfms/sec (digital)
Model : MSO4032
Analog Channels : 2
Digital Logic Channels : 16
Frequency : 350 MHz
Memory Depth : 140 Million Points (analog); 28 Mpts (digital)
Waveform Acquisition Rate : 110,000 Waveforms per Second (analog); 85,000 Wfms/sec (digital)
Model : MSO4024
Analog Channels : 4
Digital Logic Channels : 16
Frequency : 200 MHz
Memory Depth : 140 Million Points (analog); 28 Mpts (digital)
Waveform Acquisition Rate : 110,000 Waveforms per Second (analog); 85,000 Wfms/sec (digital)
Model : MSO4022
Analog Channels : 2
Digital Logic Channels : 16
Frequency : 200 MHz
Memory Depth : 140 Million Points (analog); 28 Mpts (digital)
Waveform Acquisition Rate : 110,000 Waveforms per Second (analog); 85,000 Wfms/sec (digital)
Model : MSO4014
Analog Channels : 4
Digital Logic Channels : 16
Frequency : 100 MHz
Memory Depth : 140 Million Points (analog); 28 Mpts (digital)
Waveform Acquisition Rate : 110,000 Waveforms per Second (analog); 85,000 Wfms/sec (digital)
Model : MSO4012
Analog Channels : 2
Digital Logic Channels : 16
Frequency : 100 MHz
Memory Depth : 140 Million Points (analog); 28 Mpts (digital)
Waveform Acquisition Rate : 110,000 Waveforms per Second (analog); 85,000 Wfms/sec (digital)
Bandwidth : 500 MHz
Analog Channels : 4
Vertical Sensitivity : 1 mV/div – 10V/div
Real-time Sample Rate : 4 GSa/s
Memory Depth : 140 Million Points
Waveform Acquisition Rate : 110,000 Waveforms per Second
Standard Interface : USB Host & Device, VGA, LXI, Trig Out, 10 MHz In/Out
Vertical Resolution : 8 bits
Math : _, _, _, FFT, customizable user defined
Cursor Measurements : Manual, Track and Auto Measure modes
Bandwidth : 500 MHz
Analog Channels : 2
Vertical Sensitivity : 1 mV/div – 10V/div
Real-time Sample Rate : 4 GSa/s
Memory Depth : 140 Million Points
Waveform Acquisition Rate : 110,000 Waveforms per Second
Standard Interface : USB Host & Device, VGA, LXI, Trig Out, 10 MHz In/Out
Vertical Resolution : 8 bits
Math : _, _, _, FFT, customizable user defined
Cursor Measurements : Manual, Track and Auto Measure modes
Bandwidth : 350 MHz
Analog Channels : 4
Vertical Sensitivity : 1 mV/div – 10V/div
Real-time Sample Rate : 4 GSa/s
Memory Depth : 140 Million Points
Waveform Acquisition Rate : 110,000 Waveforms per Second
Standard Interface : USB Host & Device, VGA, LXI, Trig Out, 10 MHz In/Out
Vertical Resolution : 8 bits
Math : _, _, _, FFT, customizable user defined
Cursor Measurements : Manual, Track and Auto Measure modes
Bandwidth : 350 MHz
Analog Channels : 2
Vertical Sensitivity : 1 mV/div – 10V/div
Real-time Sample Rate : 4 GSa/s
Memory Depth : 140 Million Points
Waveform Acquisition Rate : 110,000 Waveforms per Second
Standard Interface : USB Host & Device, VGA, LXI, Trig Out, 10 MHz In/Out
Vertical Resolution : 8 bits
Math : _, _, _, FFT, customizable user defined
Cursor Measurements : Manual, Track and Auto Measure modes
Bandwidth : 200 MHz
Analog Channels : 4
Vertical Sensitivity : 1 mV/div – 10V/div
Real-time Sample Rate : 4 GSa/s
Memory Depth : 140 Million Points
Waveform Acquisition Rate : 110,000 Waveforms per Second
Standard Interface : USB Host & Device, VGA, LXI, Trig Out, 10 MHz In/Out
Vertical Resolution : 8 bits
Math : _, _, _, FFT, customizable user defined
Cursor Measurements : Manual, Track and Auto Measure modes
Bandwidth : 200 MHz
Analog Channels : 2
Vertical Sensitivity : 1 mV/div – 10V/div
Real-time Sample Rate : 4 GSa/s
Memory Depth : 140 Million Points
Waveform Acquisition Rate : 110,000 Waveforms per Second
Standard Interface : USB Host & Device, VGA, LXI, Trig Out, 10 MHz In/Out
Vertical Resolution : 8 bits
Math : _, _, _, FFT, customizable user defined
Cursor Measurements : Manual, Track and Auto Measure modes
Bandwidth : 100 MHz
Analog Channels : 4
Vertical Sensitivity : 1 mV/div – 10V/div
Real-time Sample Rate : 4 GSa/s
Memory Depth : 140 Million Points
Waveform Acquisition Rate : 110,000 Waveforms per Second
Standard Interface : USB Host & Device, VGA, LXI, Trig Out, 10 MHz In/Out
Vertical Resolution : 8 bits
Math : _, _, _, FFT, customizable user defined
Cursor Measurements : Manual, Track and Auto Measure modes
Bandwidth : 100 MHz
Analog Channels : 2
Vertical Sensitivity : 1 mV/div – 10V/div
Real-time Sample Rate : 4 GSa/s
Memory Depth : 140 Million Points
Waveform Acquisition Rate : 110,000 Waveforms per Second
Standard Interface : USB Host & Device, VGA, LXI, Trig Out, 10 MHz In/Out
Vertical Resolution : 8 bits
Math : _, _, _, FFT, customizable user defined
Cursor Measurements : Manual, Track and Auto Measure modes
Model : MSO2302A
Bandwidth : 300 MHz
Integrated 2 Channel Source : No
Analog Channels : 2
Sample Rate : 2 GSa/s ; 1 GSa/s digital
Max Memory Depth : 14Mpts(standard) ,56Mpts(option)
Display : 8 inch LCD display
Standard Interface : USB Host & Device, RS-232, P/F Out
Impedance : High Impedance and 50 Ohm matching
16 Digital Channels for
Mixed Signal Analysis : Yes
Model : MSO2302A-S
Bandwidth : 300 MHz
Integrated 2 Channel Source : Yes
Analog Channels : 2
Sample Rate : 2 GSa/s ; 1 GSa/s digital
Max Memory Depth : 14Mpts(standard) ,56Mpts(option)
Display : 8 inch LCD display
Standard Interface : USB Host & Device, RS-232, P/F Out
Impedance : High Impedance and 50 Ohm matching
16 Digital Channels for
Mixed Signal Analysis : Yes
Model : MSO2202A
Bandwidth : 200 MHz
Integrated 2 Channel Source : No
Analog Channels : 2
Sample Rate : 2 GSa/s ; 1 GSa/s digital
Max Memory Depth : 14Mpts(standard) ,56Mpts(option)
Display : 8 inch LCD display
Standard Interface : USB Host & Device, RS-232, P/F Out
Impedance : High Impedance and 50 Ohm matching
16 Digital Channels for
Mixed Signal Analysis : Yes
Model : MSO2202A-S
Bandwidth : 200 MHz
Integrated 2 Channel Source : Yes
Analog Channels : 2
Sample Rate : 2 GSa/s ; 1 GSa/s digital
Max Memory Depth : 14Mpts(standard) ,56Mpts(option)
Display : 8 inch LCD display
Standard Interface : USB Host & Device, RS-232, P/F Out
Impedance : High Impedance and 50 Ohm matching
16 Digital Channels for
Mixed Signal Analysis : Yes
Model : MSO2102A
Bandwidth : 100 MHz
Integrated 2 Channel Source : No
Analog Channels : 2
Sample Rate : 2 GSa/s ; 1 GSa/s digital
Max Memory Depth : 14Mpts(standard) ,56Mpts(option)
Display : 8 inch LCD display
Standard Interface : USB Host & Device, RS-232, P/F Out
Impedance : High Impedance and 50 Ohm matching
16 Digital Channels for
Mixed Signal Analysis : Yes
Model : MSO2102A-S
Bandwidth : 100 MHz
Integrated 2 Channel Source : Yes
Analog Channels : 2
Sample Rate : 2 GSa/s ; 1 GSa/s digital
Max Memory Depth : 14Mpts(standard) ,56Mpts(option)
Display : 8 inch LCD display
Standard Interface : USB Host & Device, RS-232, P/F Out
Impedance : High Impedance and 50 Ohm matching
16 Digital Channels for
Mixed Signal Analysis : Yes
Model : MSO2072A
Bandwidth : 70 MHz
Integrated 2 Channel Source : No
Analog Channels : 2
Sample Rate : 2 GSa/s ; 1 GSa/s digital
Max Memory Depth : 14Mpts(standard) ,56Mpts(option)
Display : 8 inch LCD display
Standard Interface : USB Host & Device, RS-232, P/F Out
Impedance : High Impedance and 50 Ohm matching
16 Digital Channels for
Mixed Signal Analysis : Yes
Model : MSO2072A-S
Bandwidth : 70 MHz
Integrated 2 Channel Source : Yes
Analog Channels : 2
Sample Rate : 2 GSa/s ; 1 GSa/s digital
Max Memory Depth : 14Mpts(standard) ,56Mpts(option)
Display : 8 inch LCD display
Standard Interface : USB Host & Device, RS-232, P/F Out
Impedance : High Impedance and 50 Ohm matching
16 Digital Channels for
Mixed Signal Analysis : Yes
