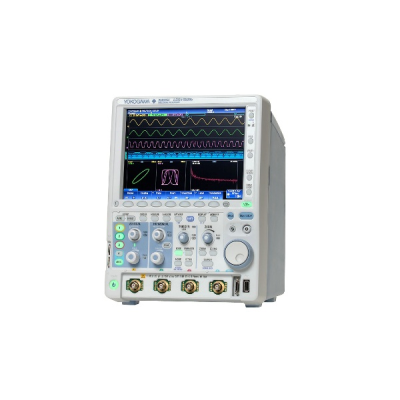

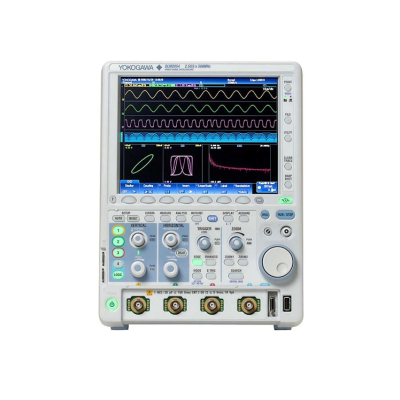

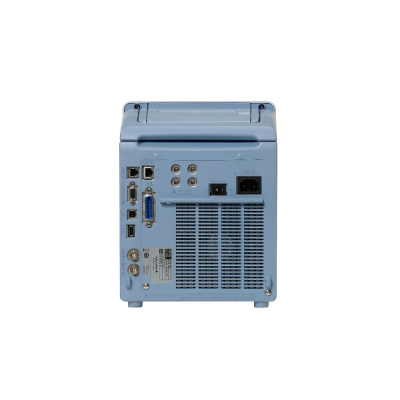

The DLM2000 is a bench-top oscilloscope for electronic design or debug.  It’s ergonomic and easy to use, and packed with features.  With bandwidths from 200 to 500 MHz and memory from up to 250 Mpoints, you can be certain there is a DLM2000 to meet your application and budget.  With the DLM2000’s industry first “flexible MSO input”, you can choose to activate channel four as an analog input, or use it to acquire 8 bits of logic instead. Modern electronics include analog and digital circuitry—and the DLM2000’s flexible MSO input lets you measure both, including mixed signal triggers and decoding of parallel or serial bit patterns.

Compact & intuitive operation

Easy-to-Use & Easy-to-See

Easy to use. Portrait body + large screen makes display easy to see.

We elevated the large (8.4-inch) LCD screen up into the line of sight. Also, the portrait format saves space on the desk or test bench. A compact "personal oscilloscope" designed for easy viewing and ease of use.

Signal Observation on 4 channels or more...

Switch between analog and logic channels

Flexible MSO input

Four channels is not sufficient to view the functioning of digital control circuits. The DLM2000 series converts 4 ch of analog input to 8-bit logic, and functions as a 3 ch analog + 8-bit logic MSO (mixed signal oscilloscope).

4 ch analog		3 ch analog + 8-bit logic

The performance of up to 11 inputs by converting to logic

Using logic input, up to 11 input signals can be observed simultaneously as 3 ch of analog and 8-bit logic. It is not only possible to use logic input for observation of data and control signals, or as a trigger source, but also for logic
input analysis of I²C and SPI serial busses.

Fast data processing with ScopeCORE With our proprietary ScopeCORE fast data processing IC, real time display is possible even signals of 11 inputs.

DLM2000 Series Lineup

Largest long memory within the class

Note: The /M1, /M2, /M3 memory expansion options are only available on 4ch models. The /M1S option is only available on 2ch models.

Large capacity memory up to 250 Mpoints

Long memory is necessary to keep high speed sample rate in long term measurement.

<Basic Formula> Measuring time = Memory length/Sample rate

If 250 Mpoints (Memory expansion option /M3) is installed, Max. 0.2 sec waveform can be captured even at 1.25 GS/s sample rate when taking 2 ch measurements in Single mode.

History function - Automatically save previously captured waveform

 With the DLM2000 series, up to 50000 previously captured waveforms can be saved in the acquisition memory. With the History function, you can display just one or all of the previously captured waveforms (history waveforms) on screen. You can also perform cursor measurement, computation, and other operations on history waveforms. Using the History function, you can analyze rarely-occurring abnormal signals.

Trigger function capturing combined analog/digital waveforms

The DLM2000 series comes with a variety of easy-to-configure triggers combining analog and logic inputs such as edge, enhanced, and B triggers.

Trigger Function Example

A to B(n) Trigger: Trigger on the 7th edge of signal on B. This is effective for measurements with shifted timing, such as non-standard video signal vertical/horizontal periods or motor reference position pulses and drive pulses.
Serial Pattern Trigger (user defined): Trigger on an arbitrarily set pattern of up to 128 bits. This is effective for detecting ID/Data and other portions of proprietary communication formats.
Dual Bus Trigger:  Trigger on a combination of CAN and LIN bus triggers. I2C + SPI bus triggers, and other combinations are possible. Trigger when either LIN or CAN bus signal conditions become true.
