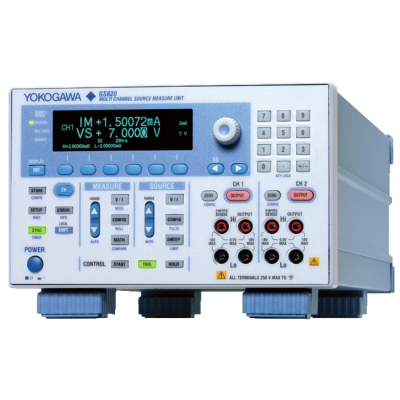

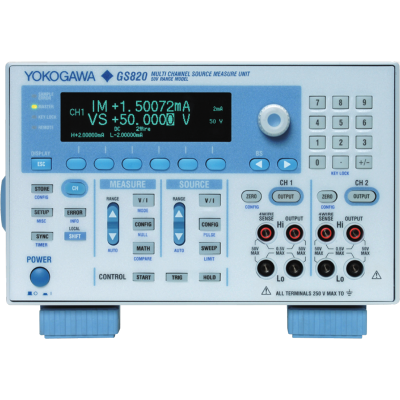

The GS820 is equipped with two analog channels with each channel consisting of a constant voltage source VS, a constant current source IS, a voltmeter VM, and an ammeter IM. The two source measure channels are isolated.

Application Examples

DC voltage/current reference, pulse voltage/current source
V-I curve trace, semiconductor parametric test
Programmable arbitrary waveform generation
Electric load, resistance measurement
Production test

Source and Measurement Range
s:
18V model: 7 V and 3.2 A or 18 V and 1.2 A50V model: 20 V and 1.2 A or 50 V and 0.6 A1 pA resolution at extremely small current range 200 nA
Generate arbitrary waveforms consisting of up to 100,000 points at 100 _s intervals
Channel expansion through master-slave synchronization link
Fast test speeds
16-bit digital I/O (model 765602/12)

2-channel display example(256 × 64 dot matrix display)
