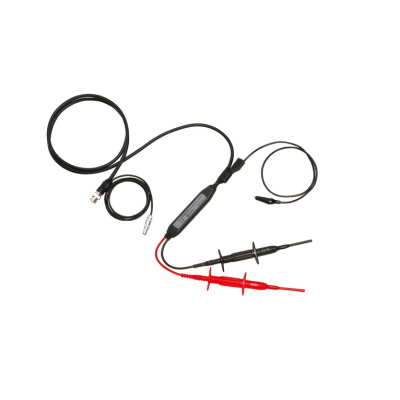

The 701922 is a 10:1 Differential Probe rated at 20Vpeak differential voltage input and 60Vpeak Common-Mode input with 200MHz bandwidth (-3dB). This probe is recommended for CAN bus and can be used with virtuallly any oscillscope with an internal 50_ termination or use the external 50_ 700976. This probe is powered via a built in pig-tail LEMO lead. This probe can be powered with Yokogawa scope option /P2 or /P4, or an external power supply 700938-3-D or 701934-D. The probe is supplied with one each pinchers, B9852MF black and B9852MG red and a 50cm ground extension.

Specifications

Bandwidth: DC to 200MHz
Attenuation ratio: 10:1
Connector Type: BNC (works with virtually all scopes)
Input Resistance: 500k_ (each side to ground)
Input Capacitance: 7pF (each side to ground)
Rise Time: not specified
Differential Input Voltage Range: +/-20V
Common Mode Input Voltage Range: +/-60V
Max Ground-Referenced Input Voltage: +/- 60V (DC + ACpeak)
Output Voltage: +/- 2V (DC + ACpeak)
Output Impedance: 50_
Gain Accuracy: +/- 1%
CMRR: -80dB 100Hz, -50dB 10MHz
Cable Length: Approx 1.2m total cable length
Standard accessories included: pinchers B9852MF black & B9852MG red, 50cm ground extension.
