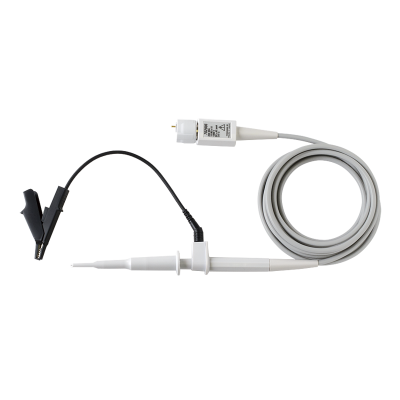

Passive Probe, 1000V_DC+ACpeak) CAT II, 200MHz, 10:1, 10M_, 2.5m. For use with DLM2000,DLM4000 series. Not for use with CAT III or CAT IV measurements

Specifications

Operating environment −40 to 85°C (no condensation)
Bandwidth: DC to 200MHz (-3dB)
Attenuation ratio: 10:1 ±2% (5 to +40 °C), 10:1 ±3% (−40 to +5 °C, +40 to +85 °C)
Connector Type: BNC
Input Resistance: 10M_ ±2% (typical)
Input Capacitance: 16pF (typical)
Matching input capacitance: 15 to 25 pF
Rise Time: 1.8 ns max. (typical)
Propagation delay: 11.2 ns (typical)
Maximum input voltage, Space Between the pincher tip and safety ground lead:

+/-1,000V (DC + ACpeak) CAT II

Probe length: 2.5m
Standard parts included: One each, B8099NJ Pincher tip(high-side), B8099NK Safety ground lead (low-side)
Safety Rating (Probe Alone): EN61010-031, Measurement category I, II 1000 V (DC + ACpeak).
