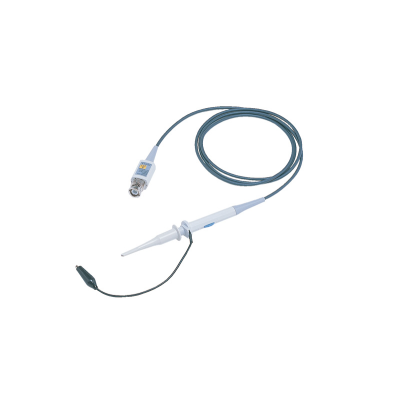

Passive Probe, 600Vpeak, 6MHz/10MHz, 1:1, 10:1, 1M_/10M_, 1.5m ‘600V Non-Isolated’Typically used for non-isolated ScopeCorder module 701255 on the Dl850/DL850V/DL750/DL750P/SL1400/SL1000.

Features

Bandwidth: DC to 10MHz (-3dB, 1/10)
Attenuation Ratio: 1:1 or 10:1 switchable
Input resistance: 1M_ or 10M_
Input capacitance: 17pF to 200pF
Compensation Range: 22pF or 200pF
Rise Time: 35ns / 58ns
Max. input voltage: 600V (DC + ACpeak, non-isolated input)
Probe Length (coax): 1.5 meter
Standard accessories include: ground lead, pinchers tip, IC test tip, ground attachment, marker tip
