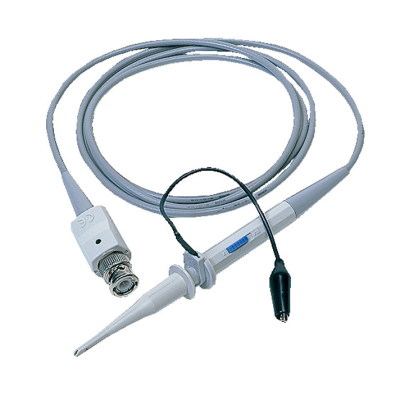

A 400 MHz passive probe designed for the DL1700E series, and DL7400 series SignalExplorers with switchable attenuation ratio of 1/10 and 1/1.

Features

Bandwidth: DC to 400MHz (-3dB, 1/10)
Attenuation Ratio: 1:1 or 10:1 switchable
Input resistance: 1M_ or 10M_
Input capacitance: 14pF or 150 pF
Compensation Range: 15pF to 250pF
Rise Time: 58ns / 900ps
Max. input voltage: 600V (DC + ACpeak, non-isolated input)
Probe Length (coax): 1.5 meter
Standard accessories include: ground lead, pinchers tip, IC test tip, ground attachment, marker tip
